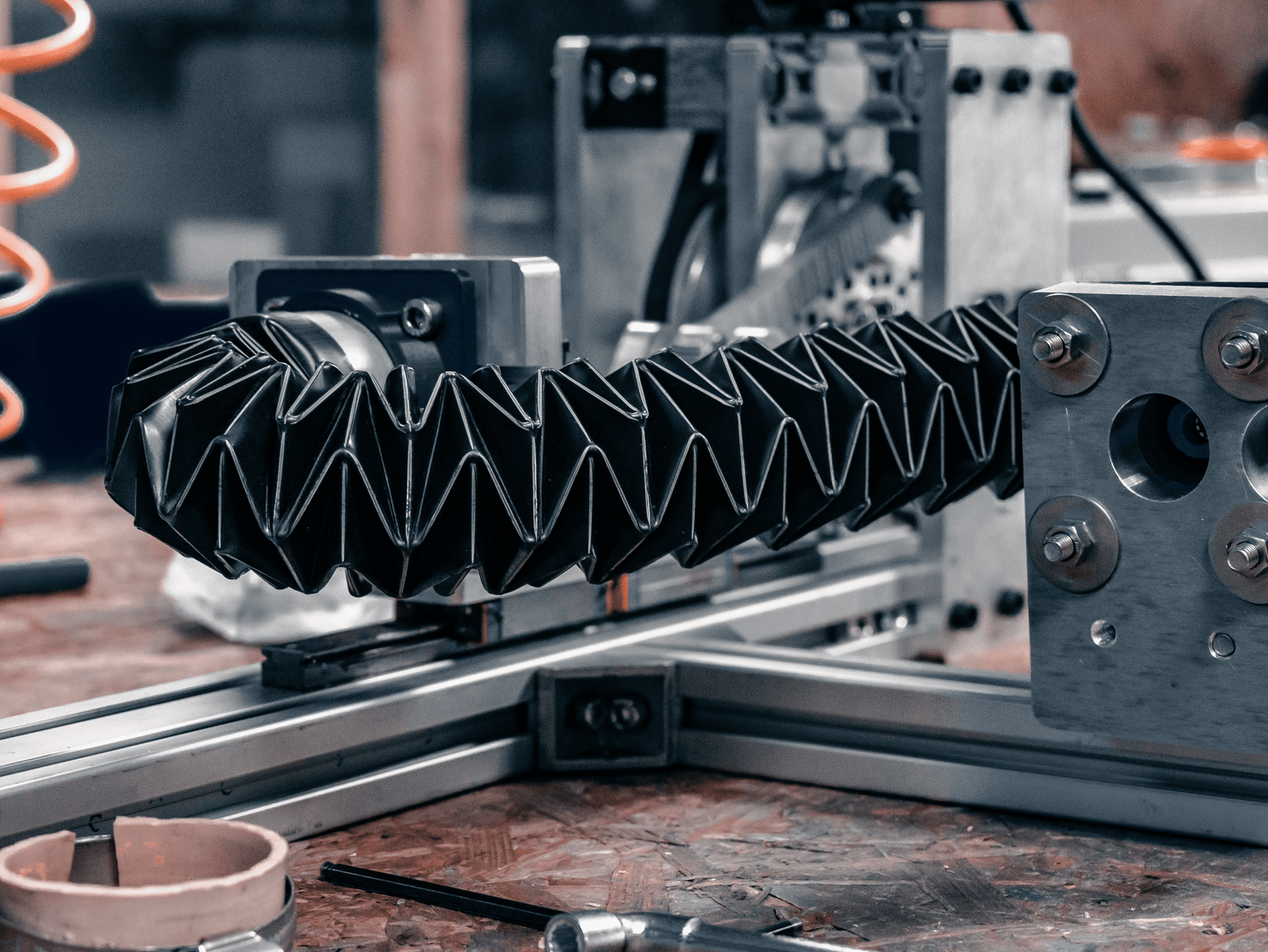

Soufflet de protection SCARA étiré

Eclore, the art of origami at the service of industrial innovation

Created in 2019, Eclore is a French company specializing in the industrial folding of polymers.
We seek to improve existing industrial components by drastically increasing their energy efficiency by reducing weight and size.
Research and development are an integral part of our activity, whether on products or production tools.

  • Excellency

  • Innovation

  • Respect

  • Sustainability

We have developed a unique industrial folding technology inspired by traditional origami, enhanced with high-precision engineering.

This technology is entirely designed, developed, and manufactured in-house, using our own machines and expertise.

By combining the creativity of traditional origami with the rigor and precision of industrial technology, we offer innovative solutions to complex problems in a variety of sectors.

Thanks to our patented processes, we reduce the weight and size of products while optimizing their energy performance.

  • Resistant

  • Certified

  • Custom-made

  • Easy to clean

1 4

The benefits of our technology

  • Designed for the most demanding markets

  • Reduces after-sales service requests

  • Improve customer satisfaction

  • Low maintenance

1 4

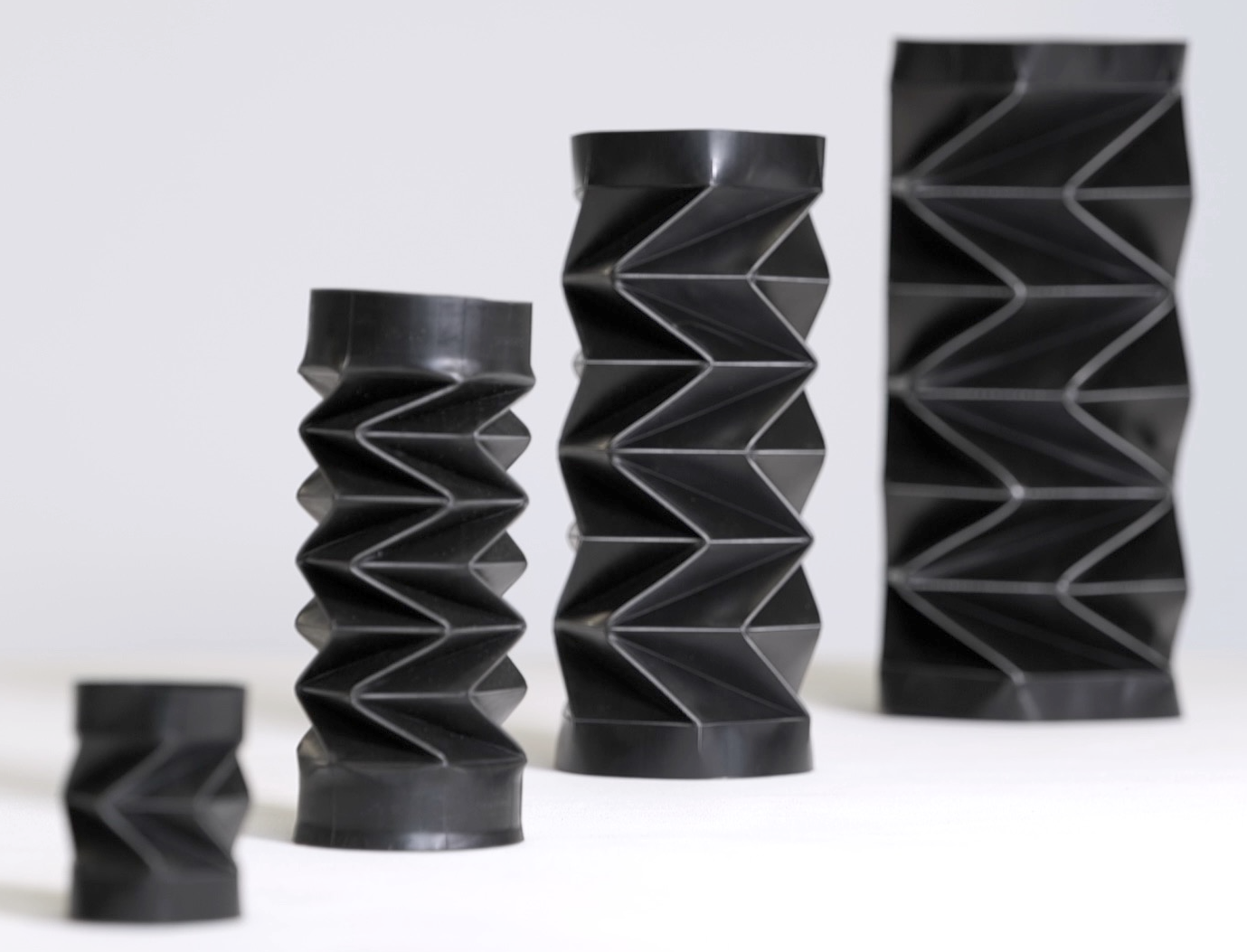

Our product range

  • Soufflet de protection SCARA noir Eclore

    Industrial

    Certified

    • 10 milion cycles
    • IP69K

    Benefit
    Resistant to UV rays, abrasion, dust, impact, oils, and acids

  • Soufflet de protection SCARA gris Eclore

    Cleanroom

    Certified

    • ISO 4
    • FDA : CFR 178.3297
    • CE 1935/2004

    Benefit
    Pollution-controlled, resistant to cleaning

  • Soufflet de protection SCARA bleu Eclore

    Food and Beveage

    Certified

    • FDA : CFR 178.3297
    • CE 1935/2004
    • CE 2023/2006
    • EU 10/2011
    • AP 89 : Colorant

    Benefit
    Resistant to high-pressure cleaning and cleaning agents

  • Soufflet de protection SCARA vert Eclore

    Static Safe

    • Certified
    • FDA : CFR 178.3297
    • CE 1935/2004
    • ISO4

    Benefit
    Resistant to UV rays, abrasion, dust, impact, oils, and acids

1 4

Technical data sheet

  • Robust

    10 million cycles under full stroke at 3 cycles/second

  • Folding

    Optimized folding for optimized stroke

  • Temperature

    - 45°C to 80°C

  • Material

    Copolymer

  • Custom

    Size, fixation and color

  • Patented

    5 international patents

  • End of product life

    No dislocation

    Recyclability

  • Waterproofing

    No assembly required,

    ensuring no weak points up to IP69K

  • Full integration

    By clamp
    By custom-made welded interfaces :

    • Compliance with EHEDG standard
    • IP69K

  • Cleaning

    High pressure 100 bar Origami design facilitating residue removal
    Compatible with a wide range of chemicals (see opposite list)

1 10

Tested

Through our own in-house testing laboratory, we carry out tests that guarantee the highest quality process.
Our products are tested for

  • Endurance

  • Sealing

  • Stiffness

Tested and approved for

  • Hydrochloric acid
  • Sulfuric acid
  • Nitric acid
  • Phosphoric acid
  • Acetic acid
  • Peracetic acid
  • Lactic acid
  • Bleach (sodium hypochlorite)
  • Hydrogen peroxide
  • Ethyl alcohol (ethanol)
  • Isopropyl alcohol (IPA)
  • JEFFA FR2 oil
  • Caustic soda (sodium hydroxide)
  • Ammonia
  • TOPAZ CL3
  • TOPAZ MD2
  • TOPAZ AC4
Banc d'essai de soufflet de protection SCARA

Industrial quality

We are committed to meet strict quality standards and maintain rigorous traceability throughout the production process :

  • Unique product traceability
  • Destructive and non-destructive testing
  • Tests throughout the manufacturing process

Abbreviation explanations :

FDA CFR : U.S. FDA Code of Federal Regulations
CE : European safety standard
ISO : International standard
EU : European Union regulation
AP : Plastics colorant/additive regulation
NF EN : European (French) standard
ANSI/ESD : U.S. electrostatic discharge standard
