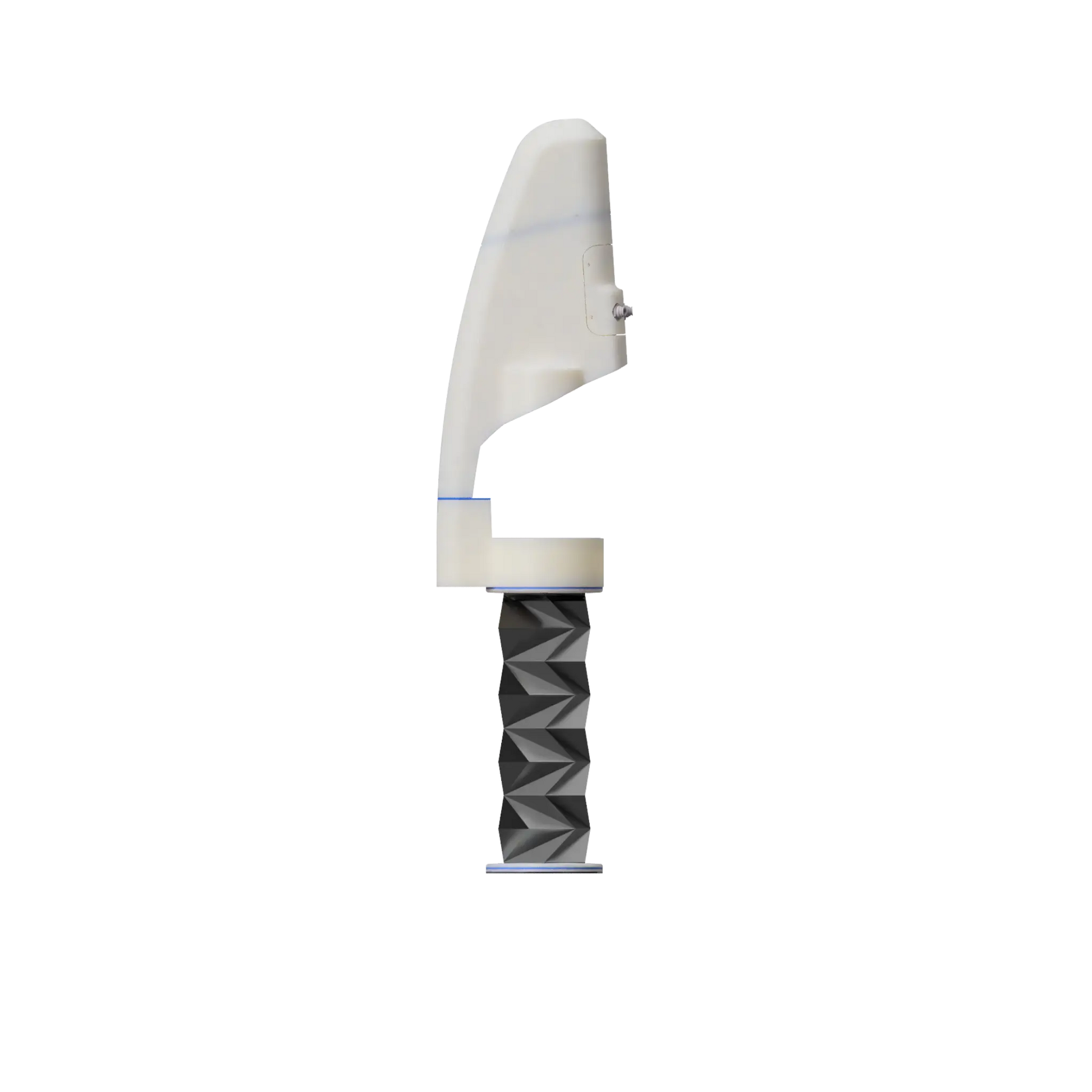

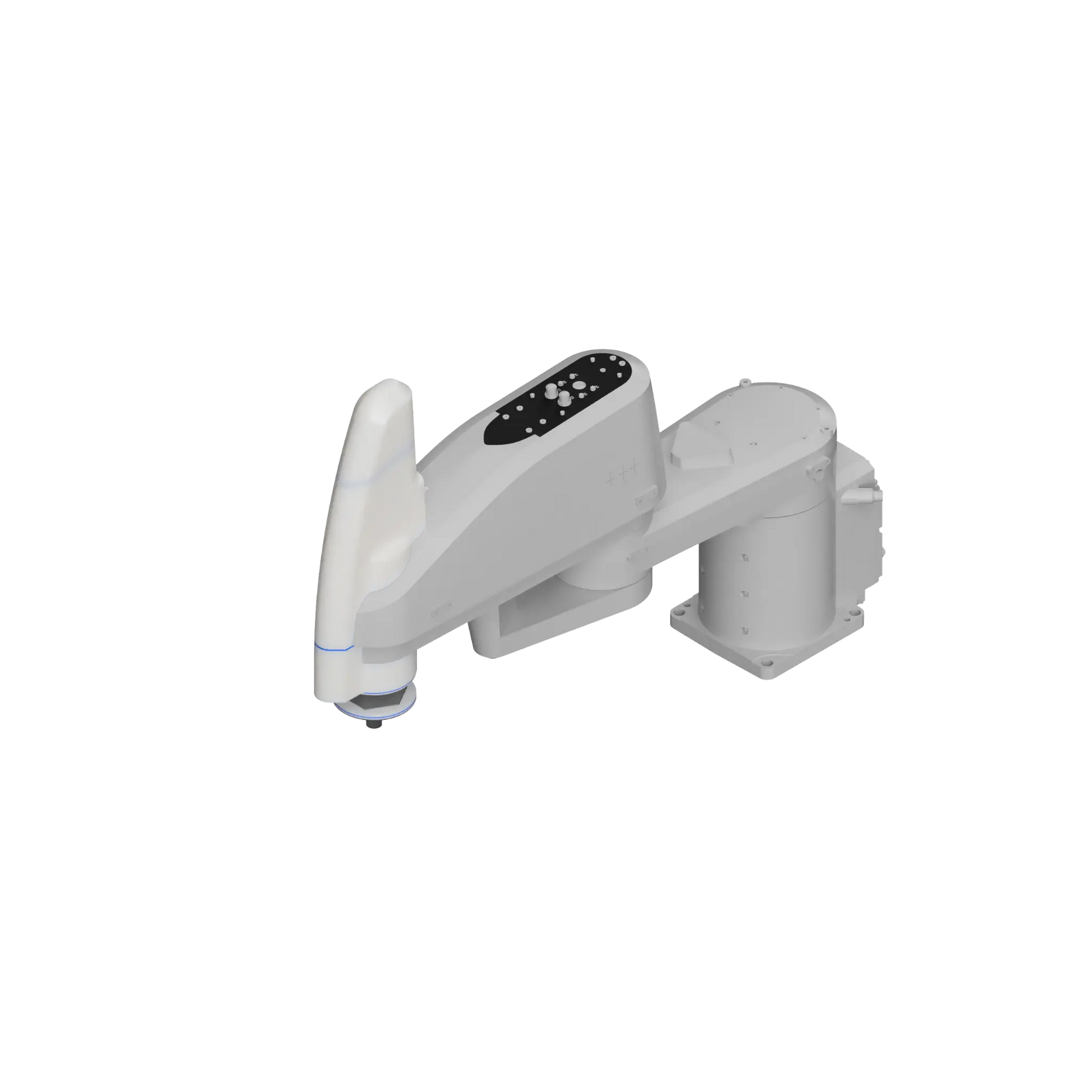

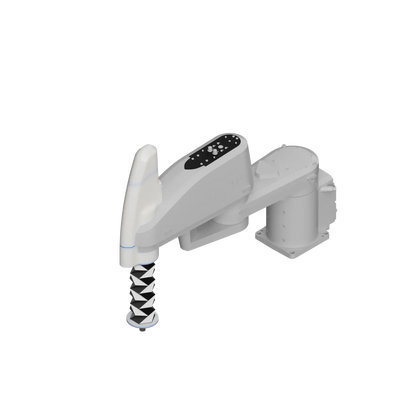

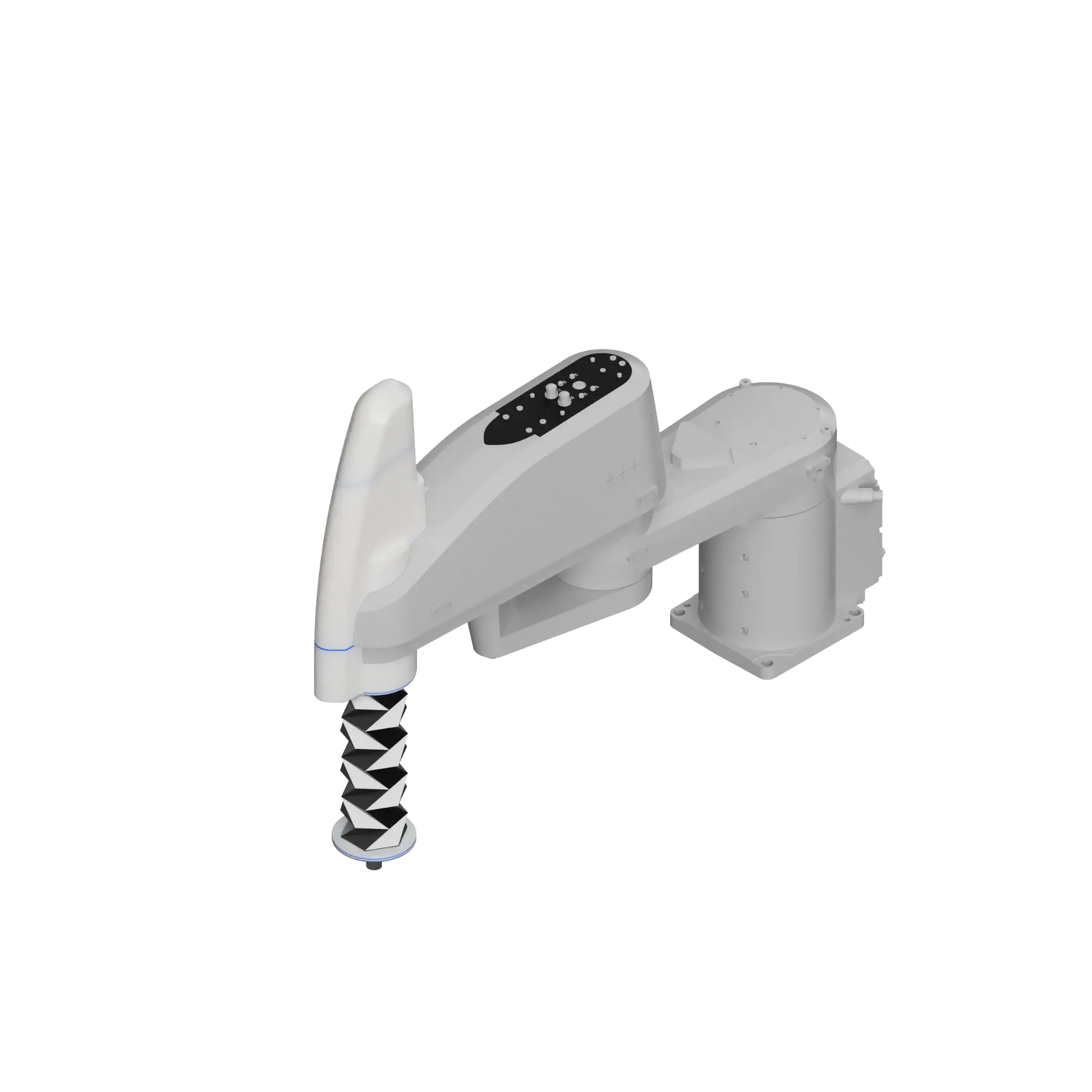

SCARA kit compatible with ABB IRB 930

SCARA kit compatible with ABB IRB 930

Protection kit for SCARA robot designed to provide optimum protection for the robot in harsh environments or to prevent contamination of a controlled area.

View full details

Specifications

  • Complete, watertight protection of the robot axis
  • Easy installation and maintenance
  • Withstands environments from -40°C to 80°C
  • Robust design resistant to oils, solvents, dust, high-pressure cleaning and UVs
  • Eclore bellows resistant to 10 million cycles

Materials to suit every application

  • Kit de protection SCARA pour les environnements poussiéreux, abrasifs et soumis à des nettoyages chimiques et jets d'eau Eclore

    Standard - PA 12 S

    Designed for dusty, abrasive and environments subject to chemical cleaning and water jets

  • Kit de protection SCARA pour industrie agro-alimentaire et salle blanche Eclore

    Food & Cleanroom - PA 12

    Designed for food, pharmaceutical and medical environments (FDA & ISO 3)

  • Kit de protection SCARA pour les environnements sensibles aux décharges électrostatiques (ESD) Eclore

    Electronic - PA 11

    Designed for environments sensitive to electrostatic discharge (ESD)

Specifications

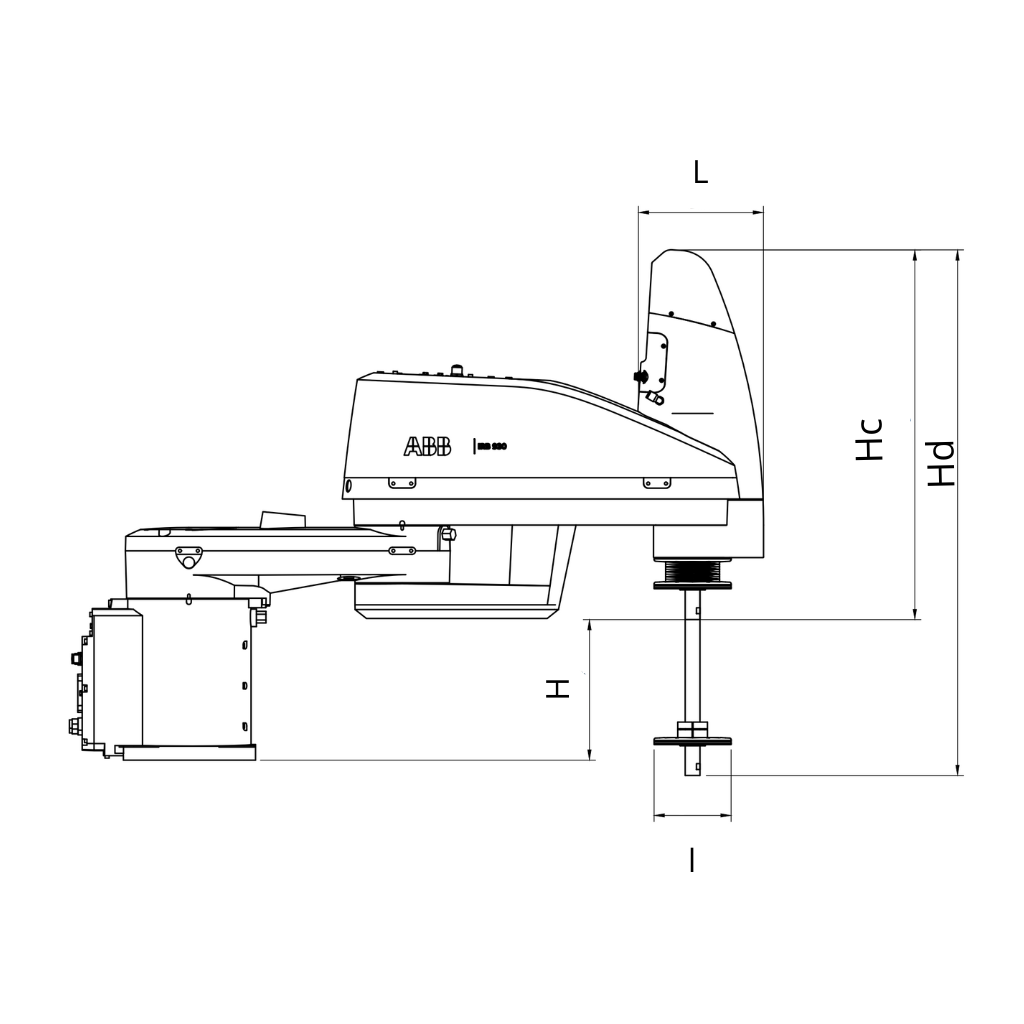

Schéma technique kit de protection SCARA compatible ABB IRB 930
Hd Extended height 887 mm
Hc Compressed height 624 mm
L Kit length 211 mm
l Kit width 130 mm
Max stroke Maximum stroke 263,2 mm
Standard stroke Stroke without kit 300 mm
H Upper axis position 237 mm
