SCARA kit compatible with FANUC Robot SR3-IAU

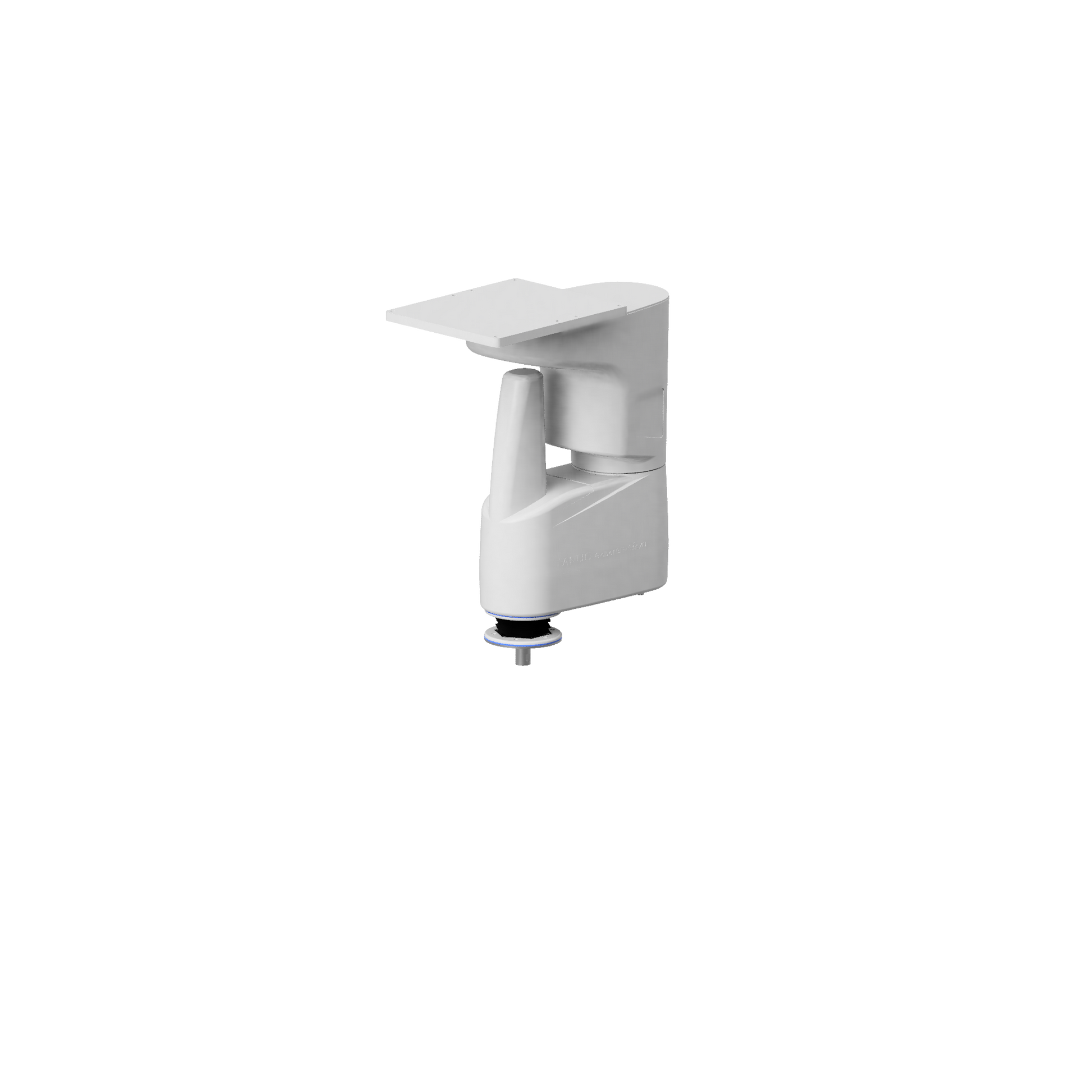

SCARA kit compatible with FANUC Robot SR3-IAUProtection kit for SCARA robot designed to provide optimum protection for the robot in harsh environments or to prevent contamination of a controlled area.
Specifications
- Complete, watertight protection of the robot axis
- Easy installation and maintenance
- Withstands environments from -40°C to 80°C
- Robust design resistant to oils, solvents, dust, high-pressure cleaning and UVs

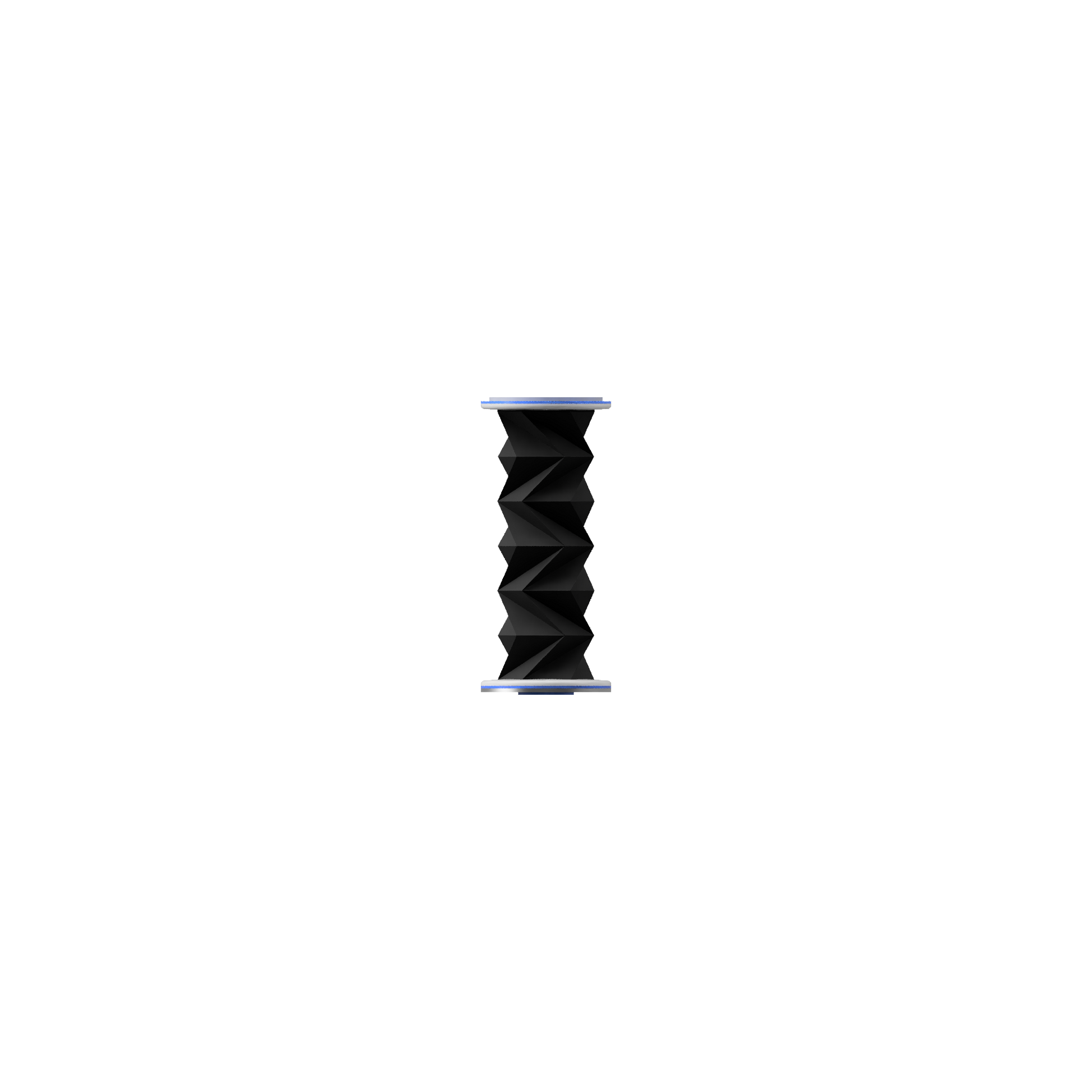

- Eclore bellows resistant to 10 million cycles
Materials to suit every application
-
Standard - PA 12 S
Designed for dusty, abrasive and environments subject to chemical cleaning and water jets
-
Food & Cleanroom - PA 12
Designed for food, pharmaceutical and medical environments (FDA & ISO 3)
-
Electronic - PA 11
Designed for environments sensitive to electrostatic discharge (ESD)
Specifications

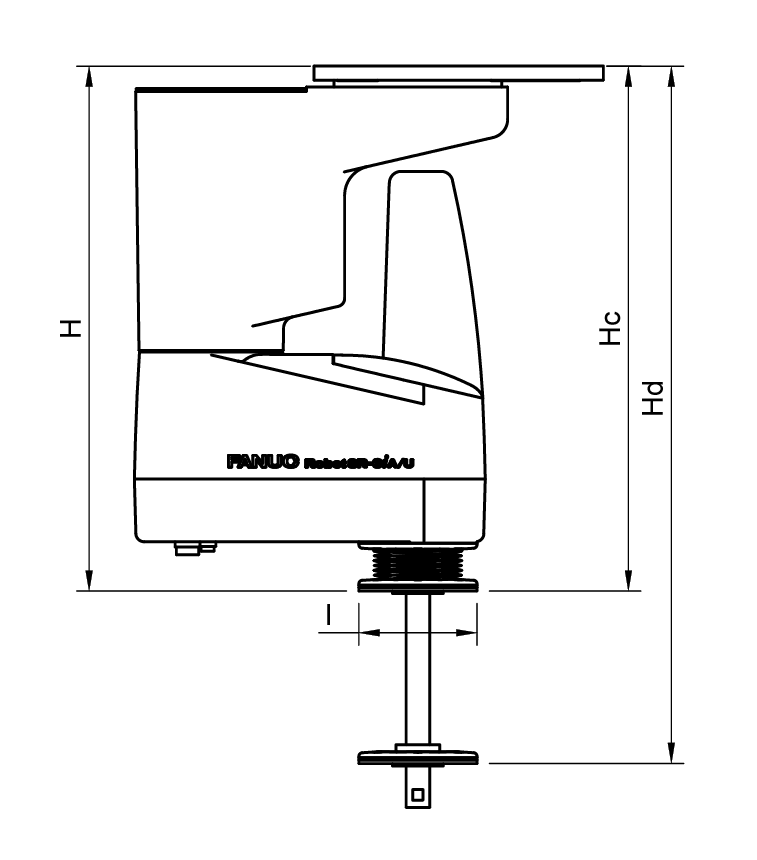

| Hd | Extended height | 580 | mm |

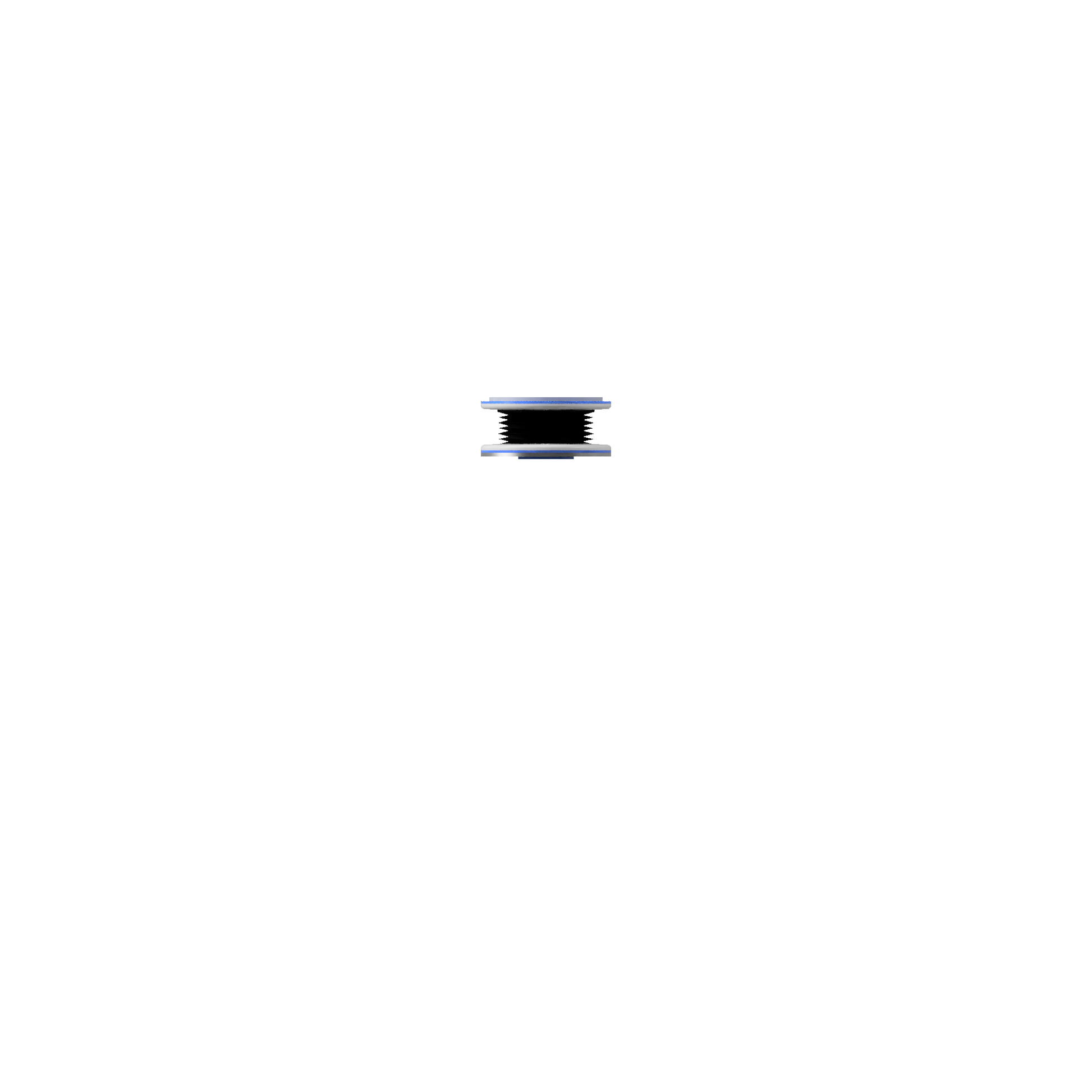

| Hc | Compressed height | 477 | mm |
| L | Kit length | mm | |
| l | Kit width | 100 | mm |
| Max stroke | Maximum stroke | 102,5 | mm |
| Standard stroke | Stroke without kit | 140 | mm |
| H | Upper axis position | 477 | mm |
