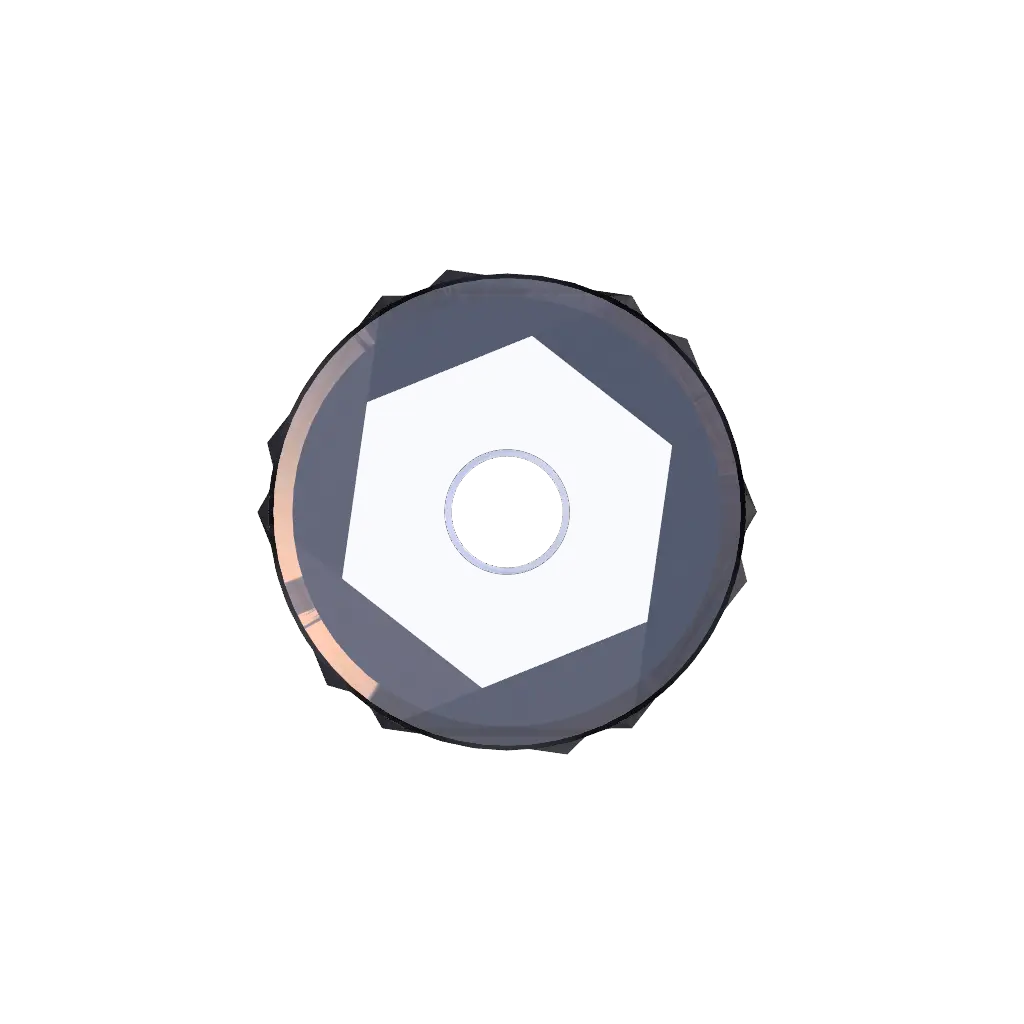

Compensator EAI050-6-006

Compensator EAI050-6-006

Device designed to facilitate precise, adaptable handling of workpieces in various industrial processes. It allows the position of objects to be adjusted in height and inclination, guaranteeing optimum adaptation to the specific needs of each task.

View full details

Features

  • Modular depending on the rod diameter.
  • Installs easily without disassembly.
  • Withstands an environment between -40°C to 80°C.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Flexibilité d'adaptation à diverses contraintes industrielles

Specifications

Race Maximum stroke 81 mm
L.d. Extended length 104 mm
Lc Compressed length 23 mm
⌀S Gripper diameter 50 mm
⌀A Pneumatic connection diameter 1/4"
⌀B Accessory connection diameter 1/4"
H Height 5 mm
Weight 39 g

Downloads

CAD Step Compensator EAI050-6-006
Step déployé Compensator EAI050-6-006
