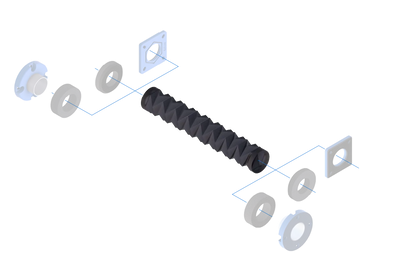

Protective bellows EPBL035-05-012

Protective bellows EPBL035-05-012

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 35 mm
Stroke Maximum bellows 188 mm
Lmax Maximum length of bellows deployed 251 mm
Lmin Minimum compressed bellows length 63 mm
Ld Active length of bellows deployed 221 mm
Lc Active length of compressed bellows 33 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 38 mm
⌀D Minimum diameter inside the compressed bellows 11 mm
Weight 14 g

Downloads

CAD Compressed bellows
Bellows deployed
Datasheet Catalog
Data sheet
Manual Installation instructions
