SKU:210000004

Protective bellows EPBL050-05-008

Protective bellows EPBL050-05-008

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details
  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.

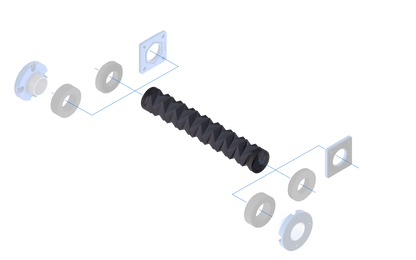

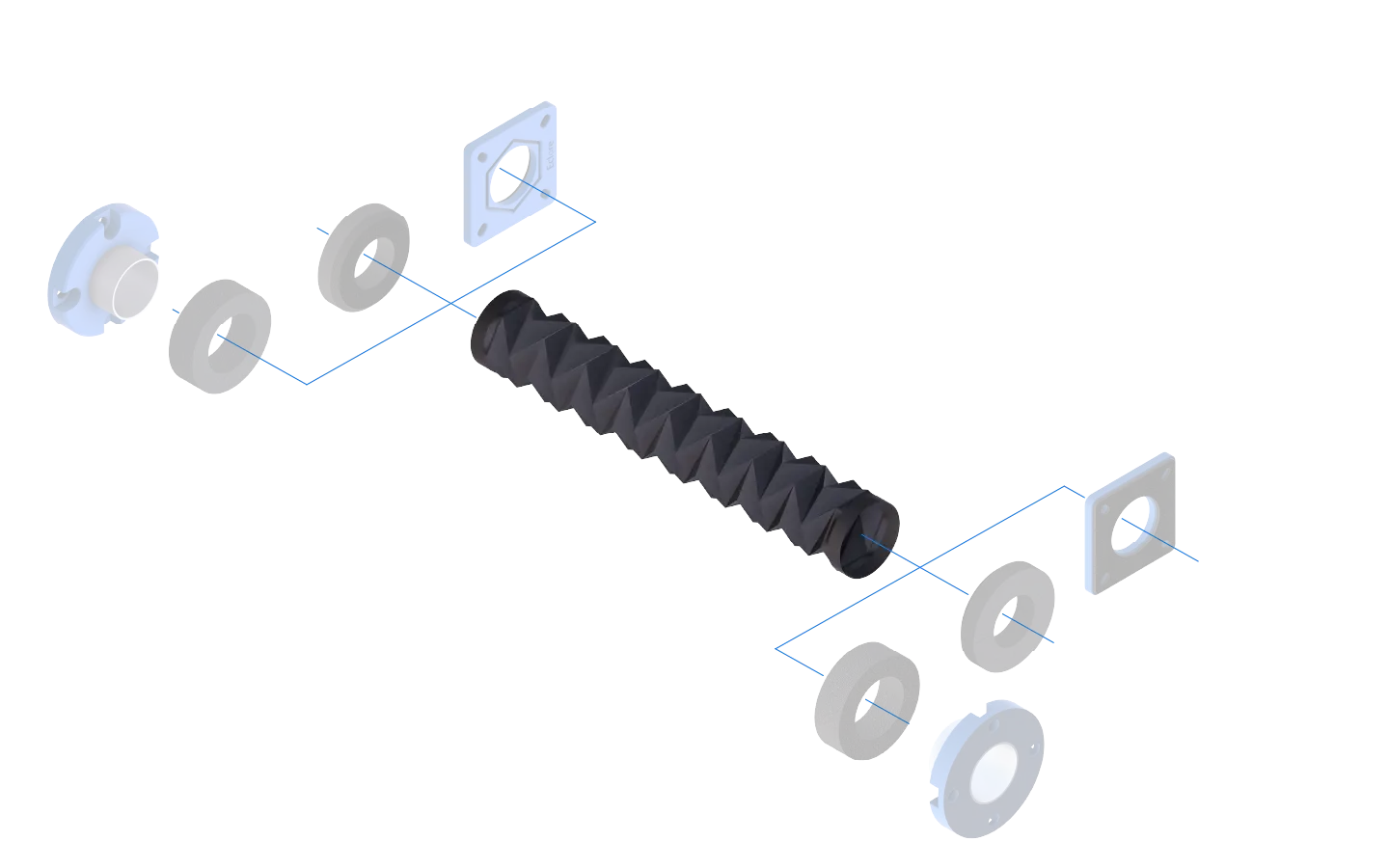

  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 50 mm
Stroke Maximum bellows 179 mm
Lmax Maximum length of bellows deployed 240 mm
Lmin Minimum compressed bellows length 61 mm
L.d. Active length of bellows deployed 210 mm
Lc Active length of compressed bellows 31 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 54 mm
⌀D Minimum diameter inside the compressed bellows 15 mm
Weight 24 g
