Protective bellows EPBL070-06-026

Protective bellows EPBL070-06-026

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details
  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.

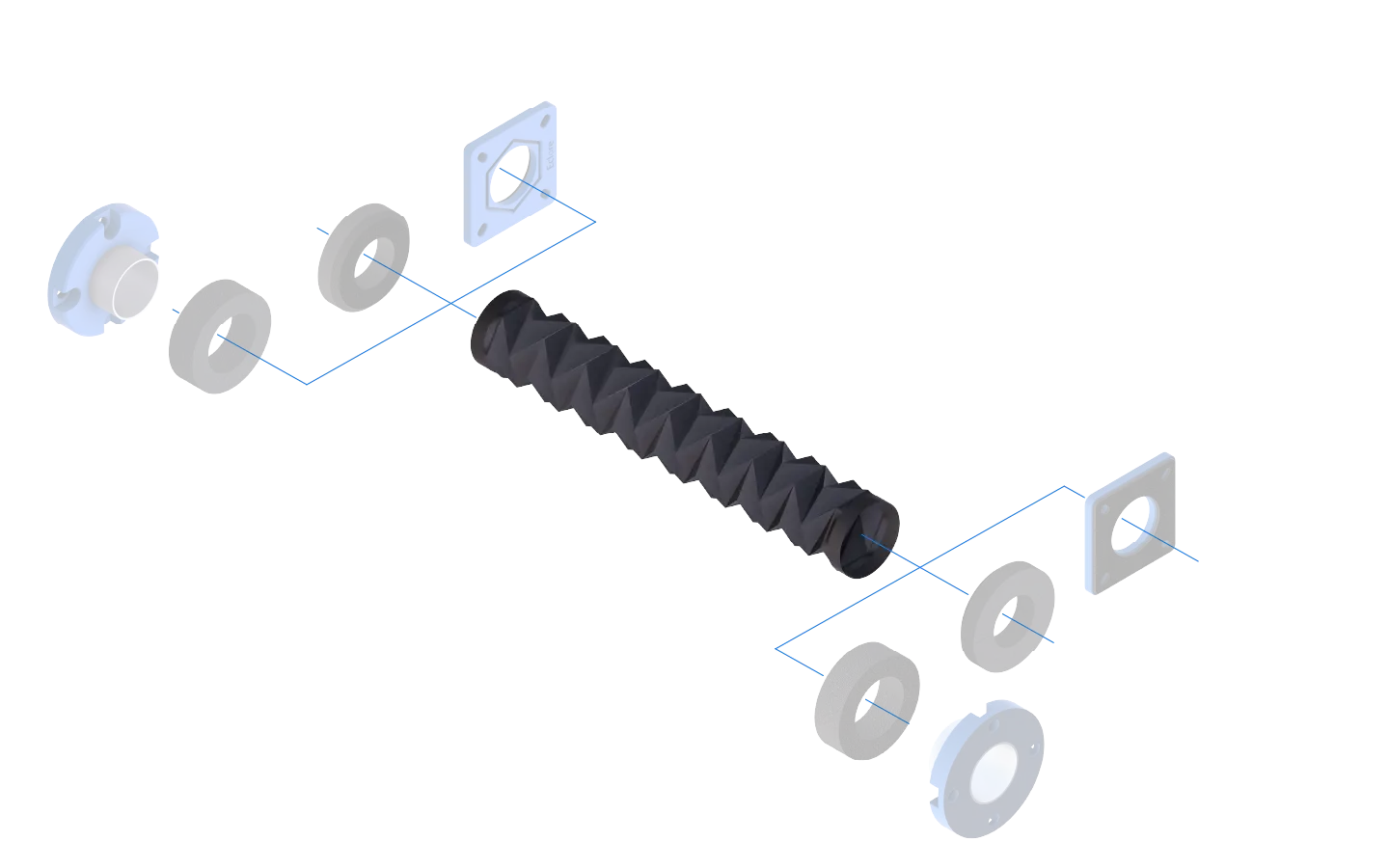

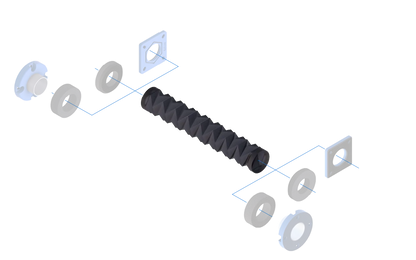

  • Large number of fixings.


⌀S Bellows outer diameter 70 mm
Stroke Maximum bellows 526 mm
Lmax Maximum length of bellows deployed 666 mm
Lmin Minimum compressed bellows length 141 mm
L.d. Active length of bellows deployed 636 mm
Lc Active length of compressed bellows 111 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 74 mm
⌀D Minimum diameter inside the compressed bellows 36 mm
Weight 119 g
