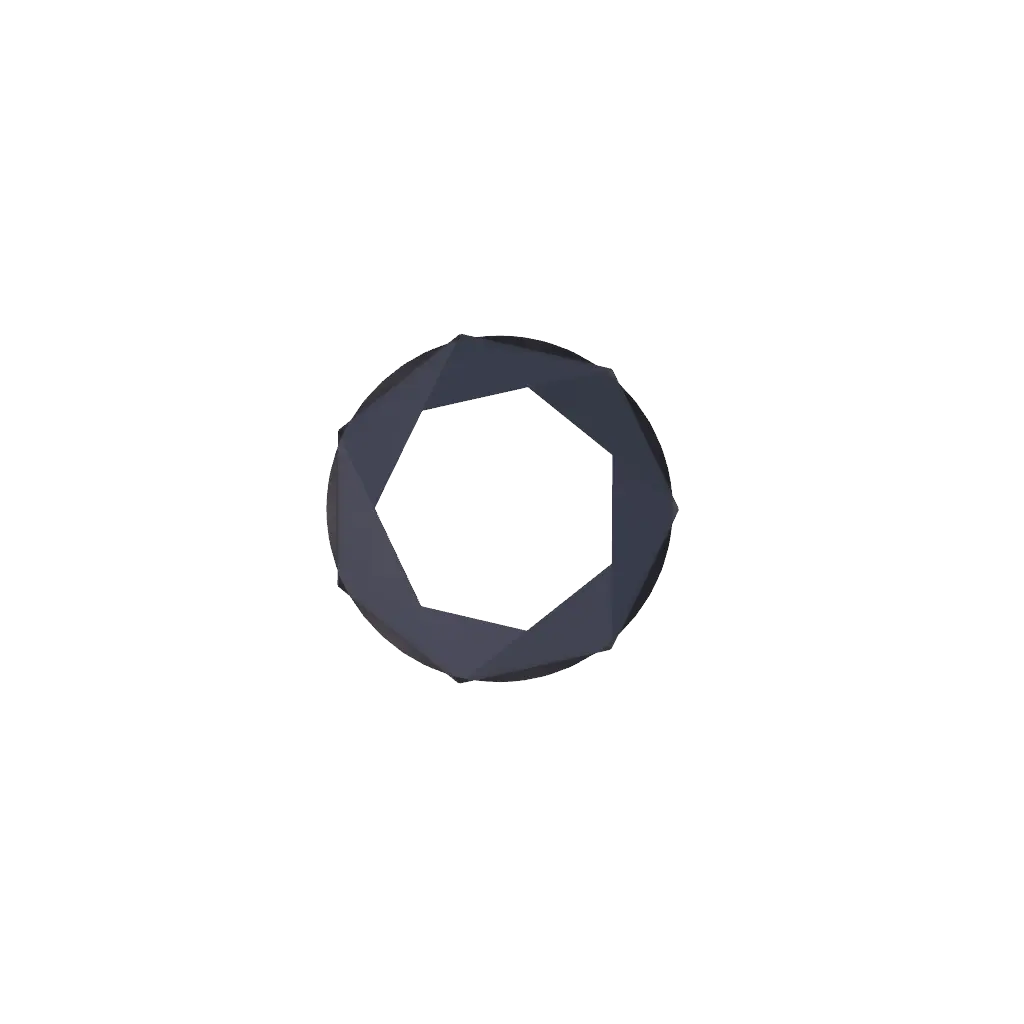

Protective bellows EPBL070-07-046

Protective bellows EPBL070-07-046

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 70 mm
Stroke Maximum bellows 663 mm
Lmax Maximum length of bellows deployed 889 mm
Lmin Minimum compressed bellows length 226 mm
Ld Active length of bellows deployed 859 mm
Lc Active length of compressed bellows 196 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 74 mm
⌀D Minimum diameter inside the compressed bellows 45 mm
Weight 162 g

Downloads

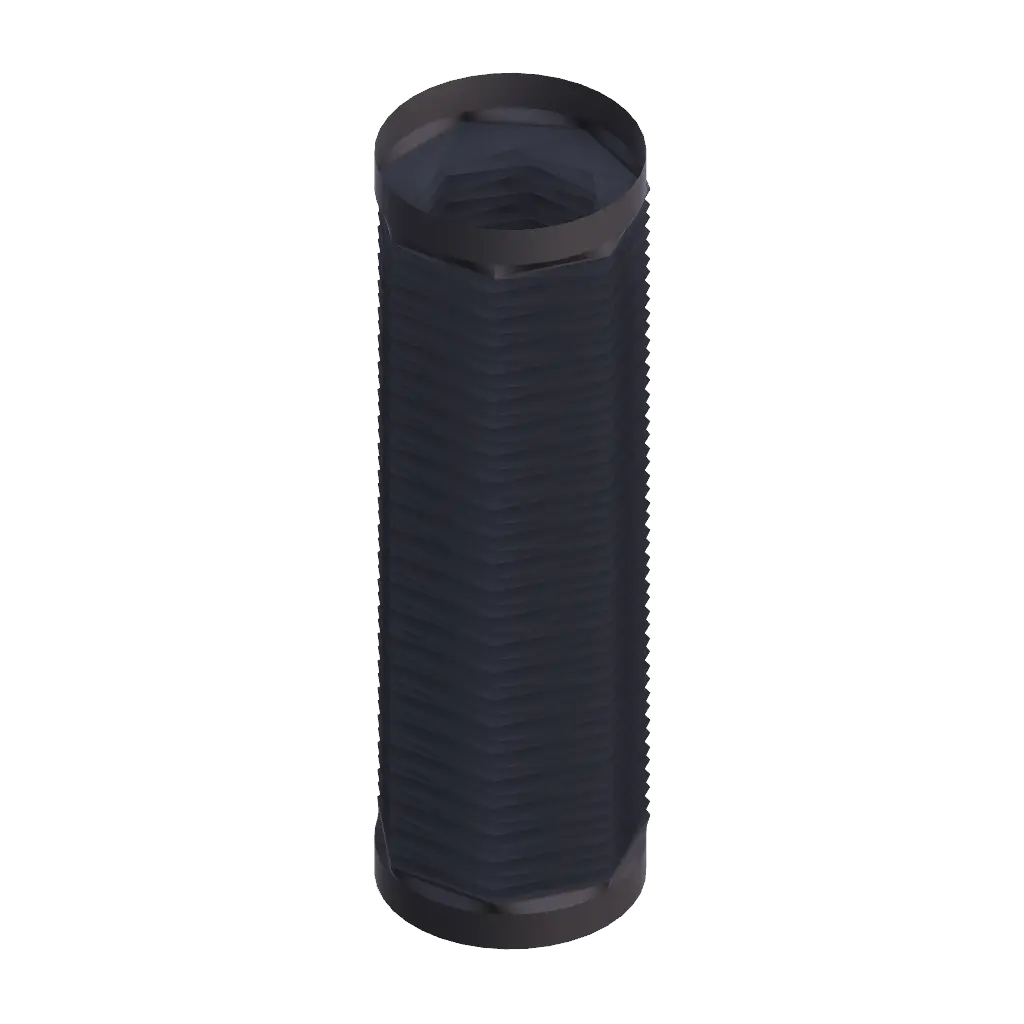

CAD Compressed bellows

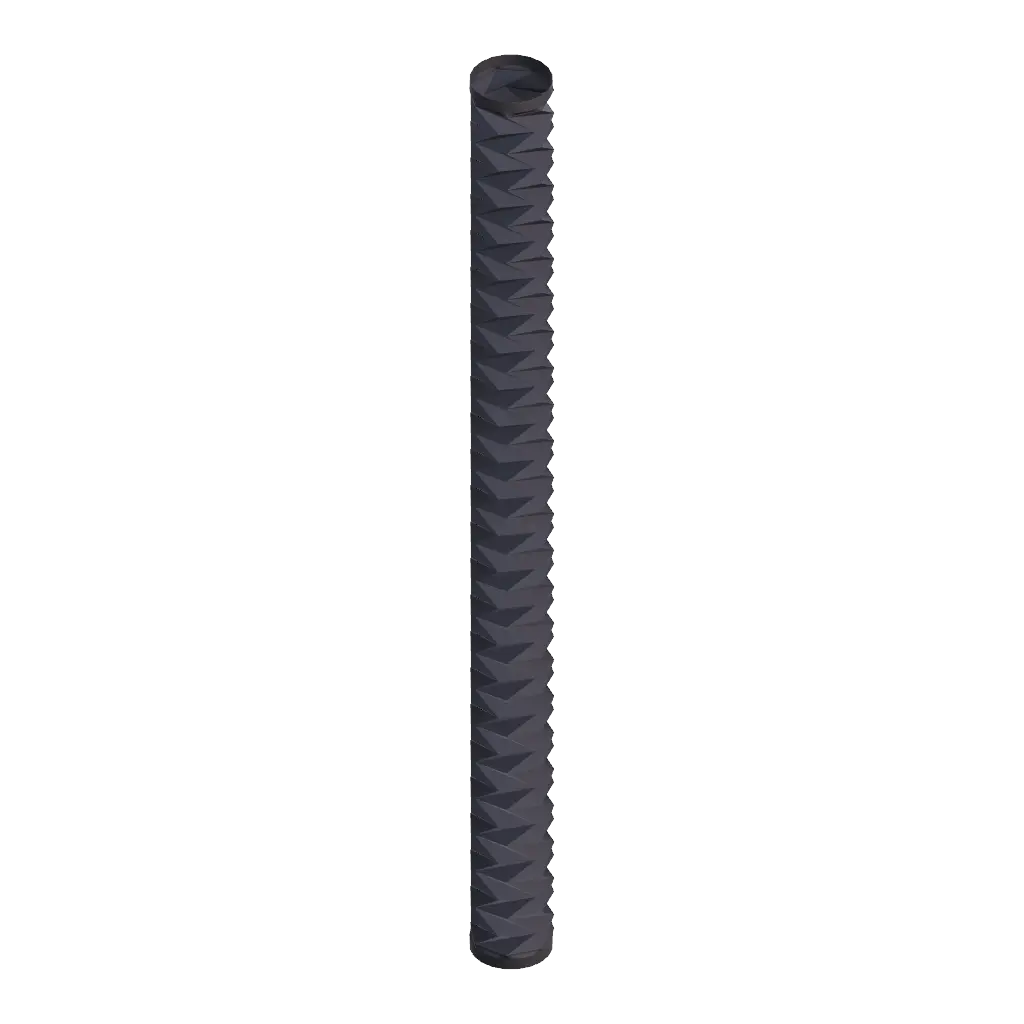

Bellows deployed
Datasheet Catalog
Data sheet
Manual Installation instructions
