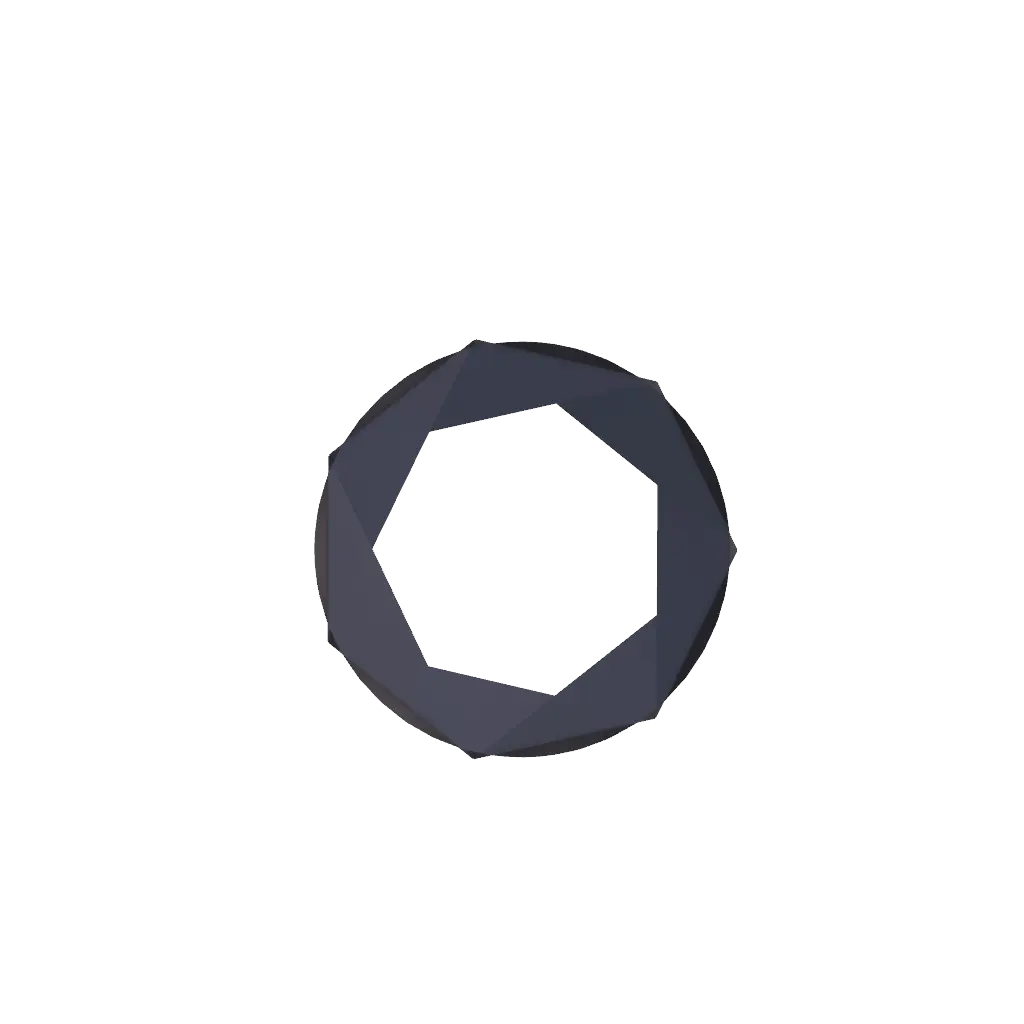

Protective bellows EPBL070-07-048

Protective bellows EPBL070-07-048

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 70 mm
Stroke Maximum bellows 692 mm
Lmax Maximum length of bellows deployed 926 mm
Lmin Minimum compressed bellows length 234 mm
Ld Active length of bellows deployed 896 mm
Lc Active length of compressed bellows 204 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 74 mm
⌀D Minimum diameter inside the compressed bellows 45 mm
Weight 169 g

Downloads

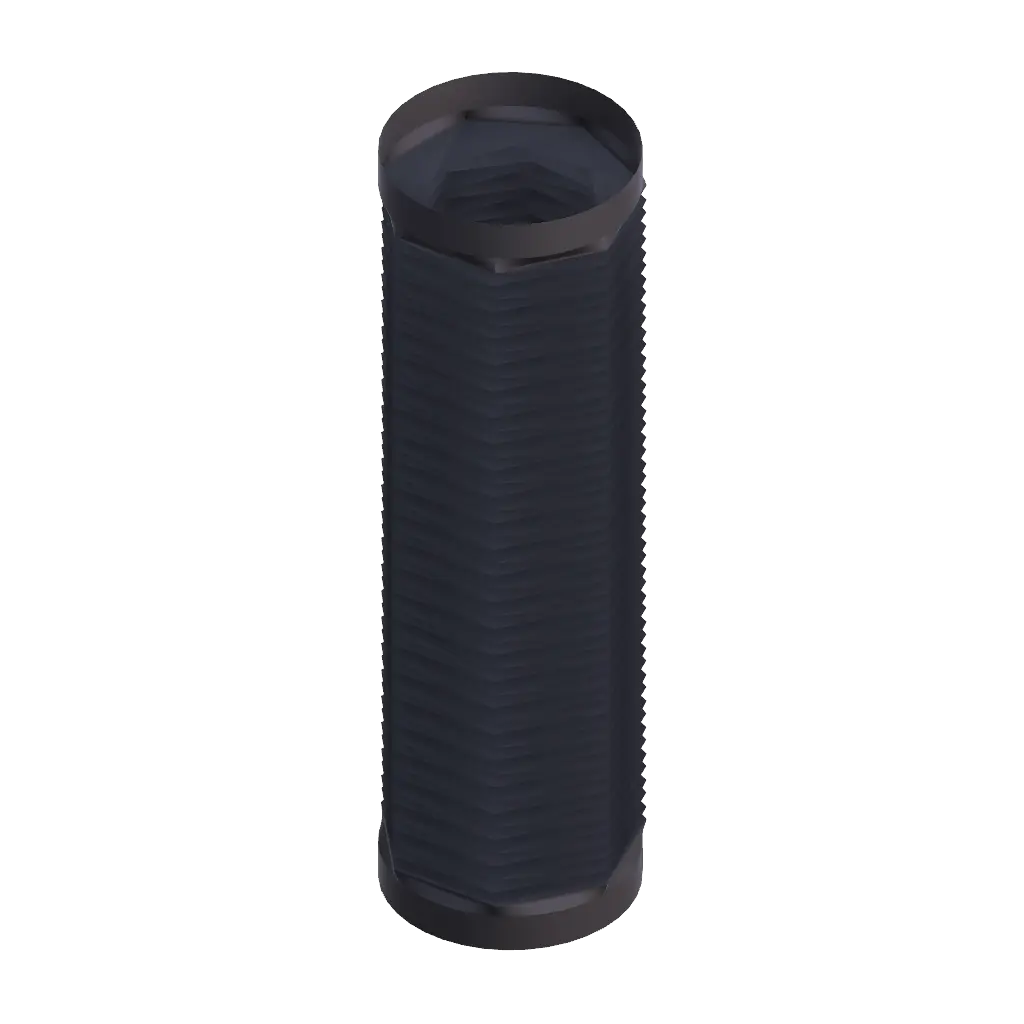

CAD Compressed bellows

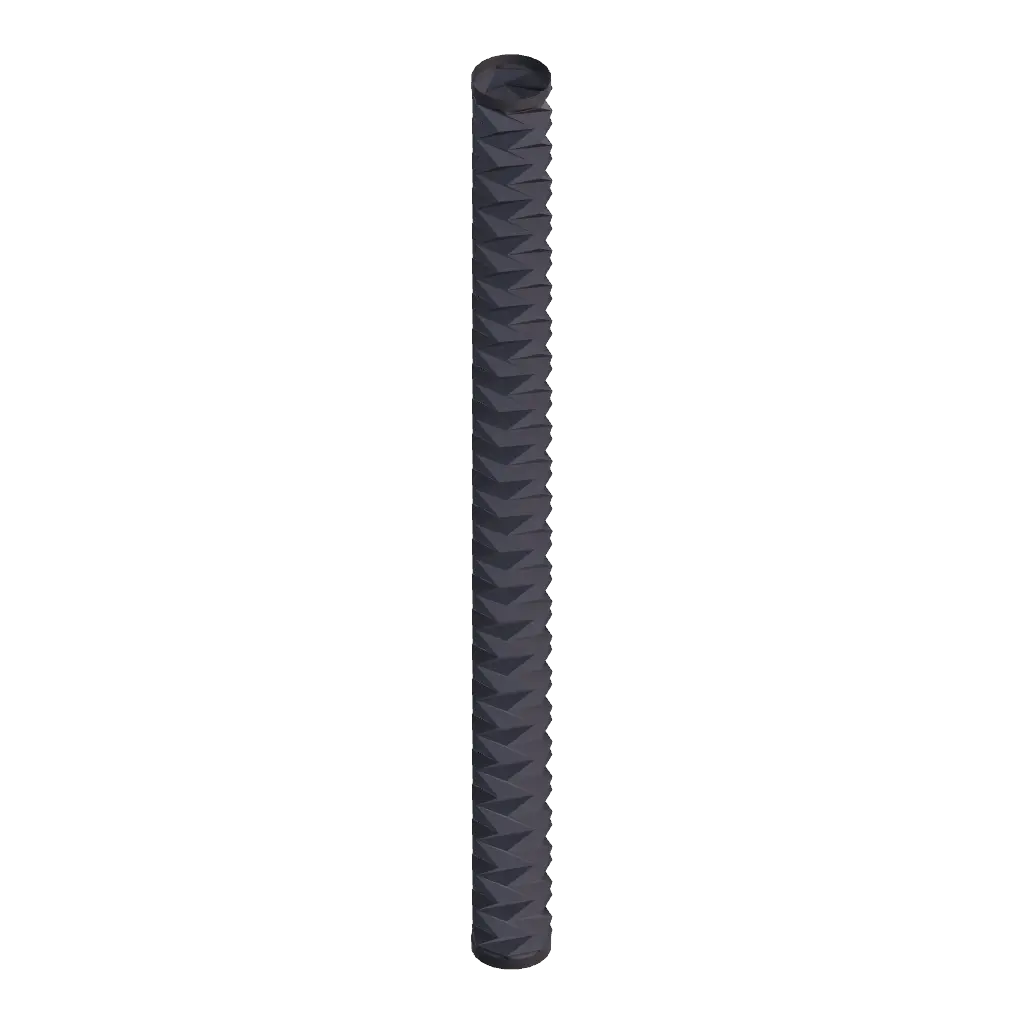

Bellows deployed
Datasheet Catalog
Data sheet
Manual Installation instructions
