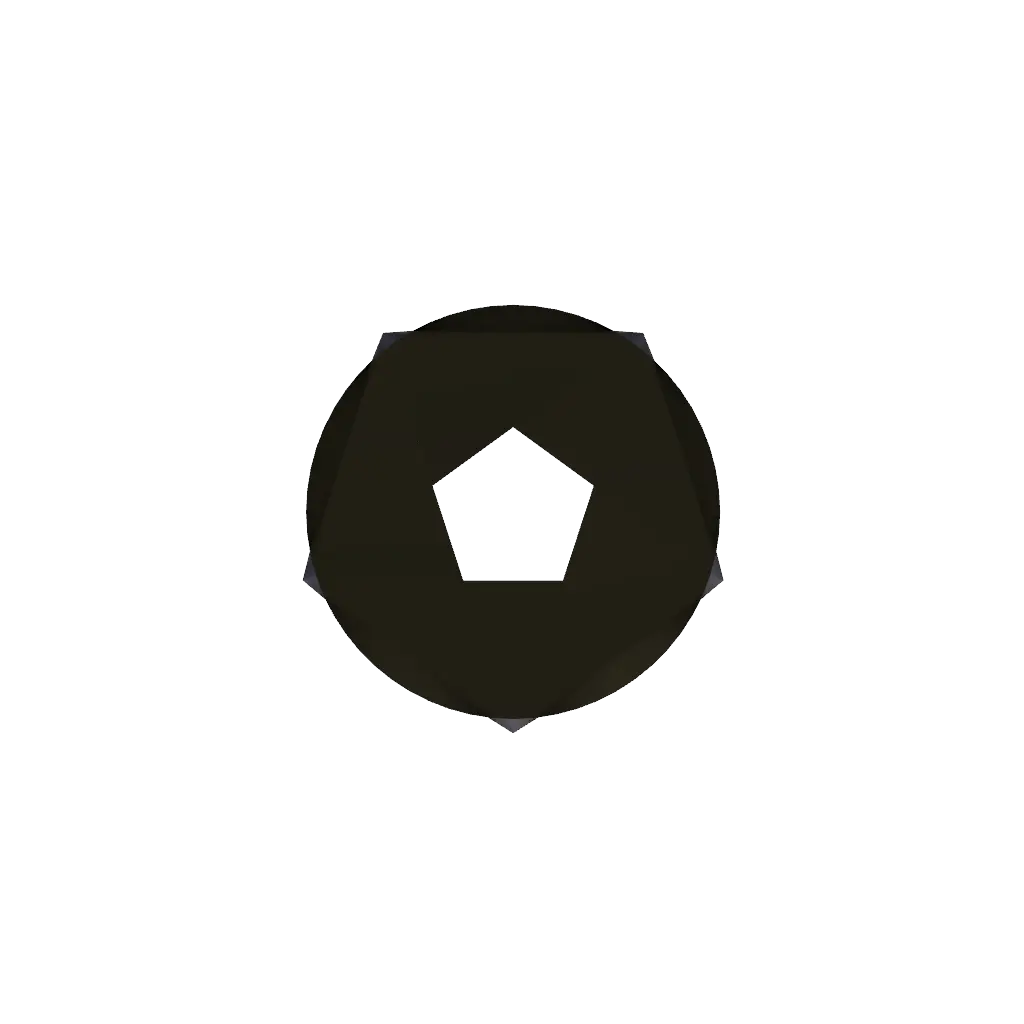

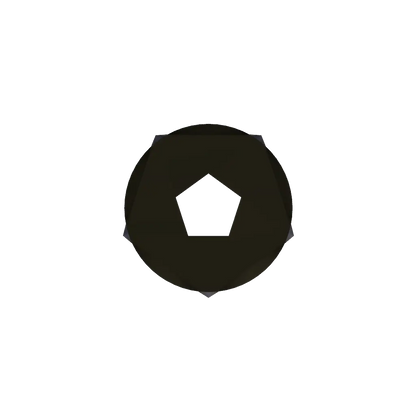

Protective bellows EPBL150-05-004

Protective bellows EPBL150-05-004

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 150 mm
Stroke Maximum bellows 302 mm
Lmax Maximum length of bellows deployed 344 mm
Lmin Minimum compressed bellows length 42 mm
Ld Active length of bellows deployed 314 mm
Lc Active length of compressed bellows 12 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 161 mm
⌀D Minimum diameter inside the compressed bellows 50 mm
Weight 116 g

Downloads

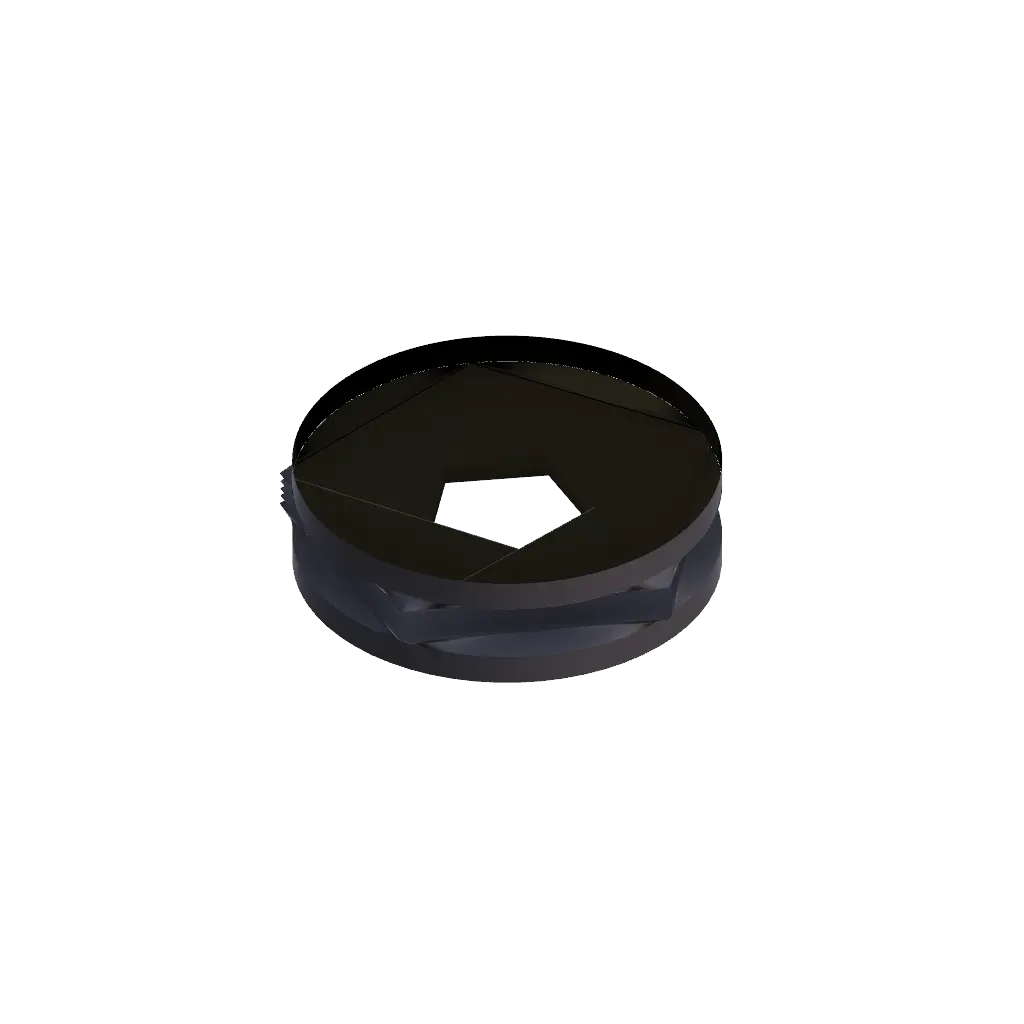

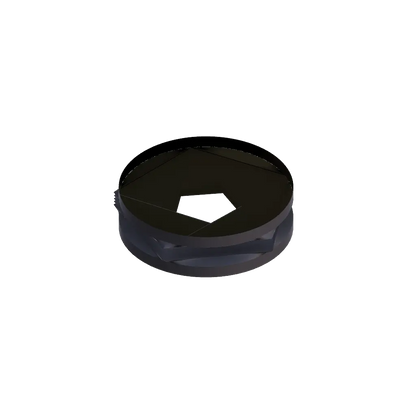

CAD Compressed bellows

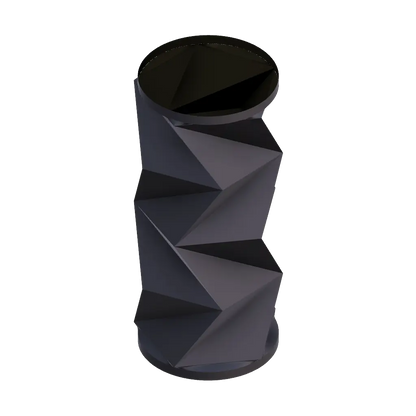

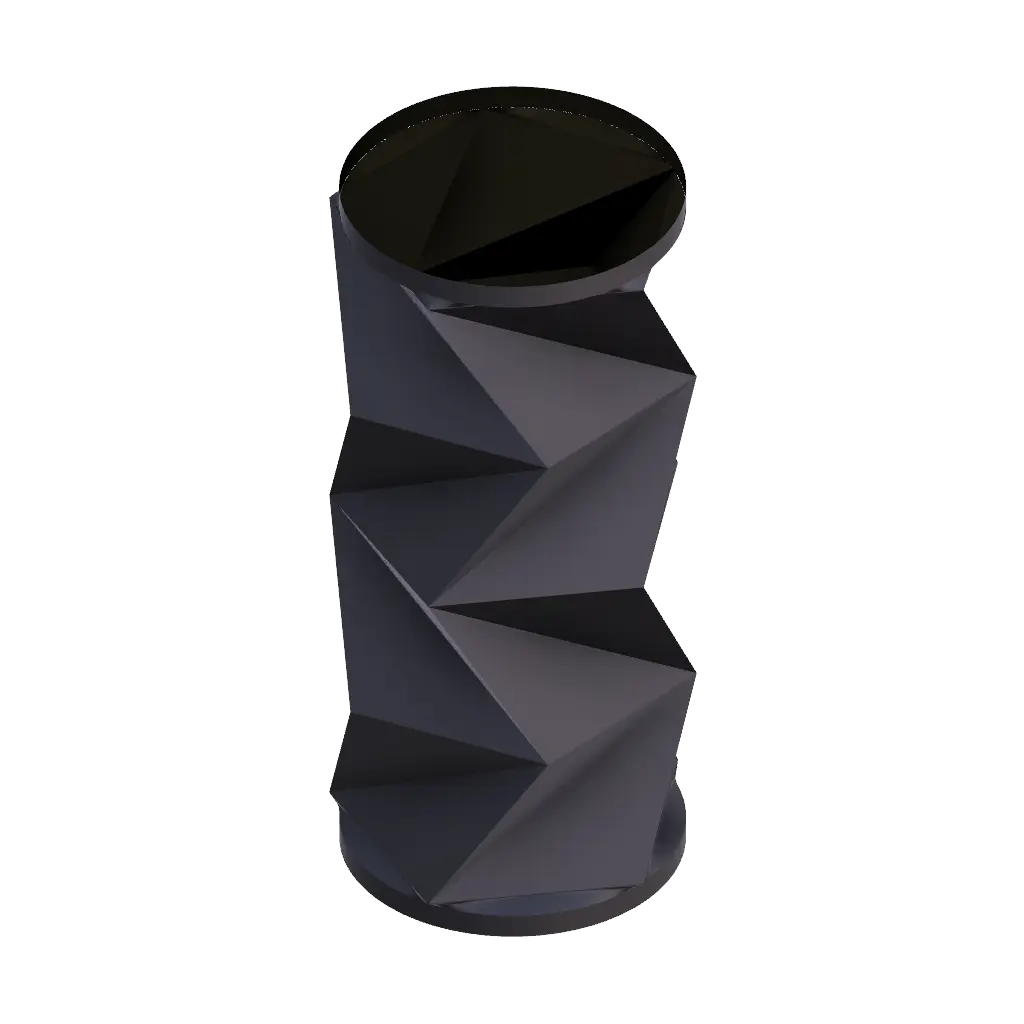

Bellows deployed
Datasheet Catalog
Data sheet
Manual Installation instructions
