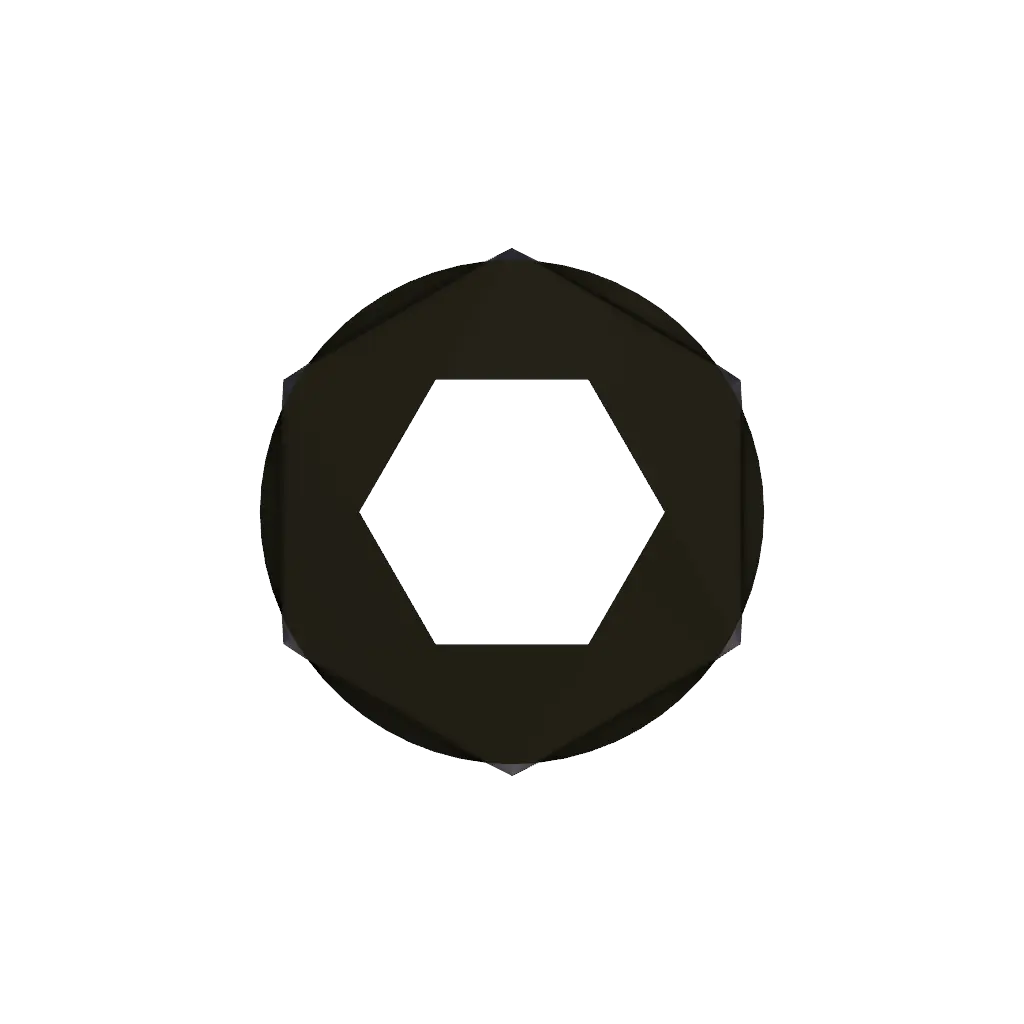

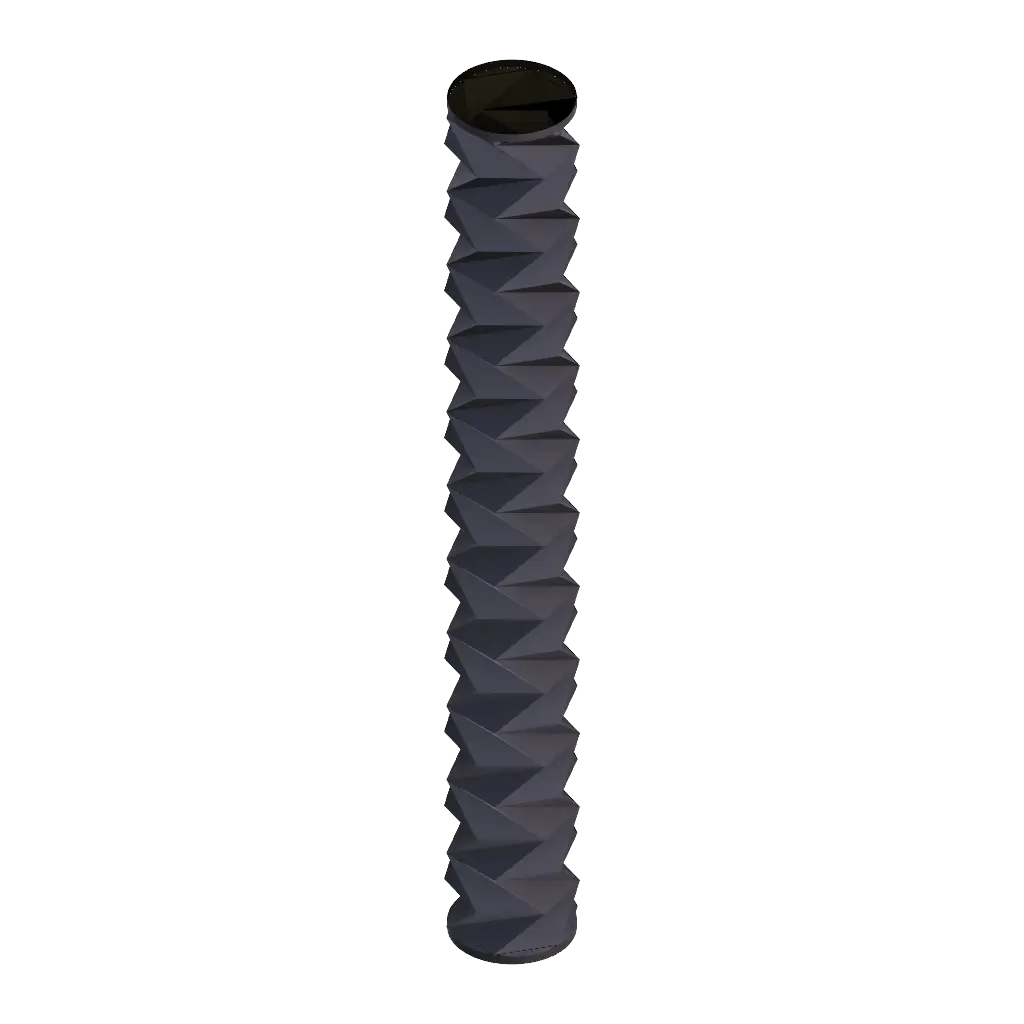

Protective bellows EPBL150-06-022

Protective bellows EPBL150-06-022

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 150 mm
Stroke Maximum bellows 1076 mm
Lmax Maximum length of bellows deployed 1173 mm
Lmin Minimum compressed bellows length 98 mm
Ld Active length of bellows deployed 1143 mm
Lc Active length of compressed bellows 68 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 158 mm
⌀D Minimum diameter inside the compressed bellows 79 mm
Weight 458 g
