Soufflet de protection cylindrique

Step 1: I find my ideal bellows

Step 2: I choose the fixation and filtration of my bellows

Find all our cylindrical bellows application solutions adapted to all sectors of activity by downloading our product catalog.

  • 5x

    Longer-lasting than a competitor's bellows

  • 20x

    Maximum ratio of extended to compressed bellows

  • +6

    Fastening options available

1 3

Our standard solutions

391 products

Our custom solutions

  • 1 Dimensions
  • 2 Environment
  • 3 Fixations
  • 4 Details
  • 5 Contact details

Dimensions

Environment

Fixations

Details

Contact details

The Eclore protection bellows divides your production costs by 5.

  • Fiable et durable

    Reliable & durable

    Designed to withstand 10 million cycles at a rate of 3 cycles/second, even in demanding environments.

    Go to section
  • Adaptable

    Adaptable

    Whether it's the size, the fastening or the filtration, the choice is yours.

    Go to section
  • Résistant

    Resistant

    Protects against impact, abrasion, chemical attack, UV and blocks dust, swarf and liquids.

    Go to section
1 3

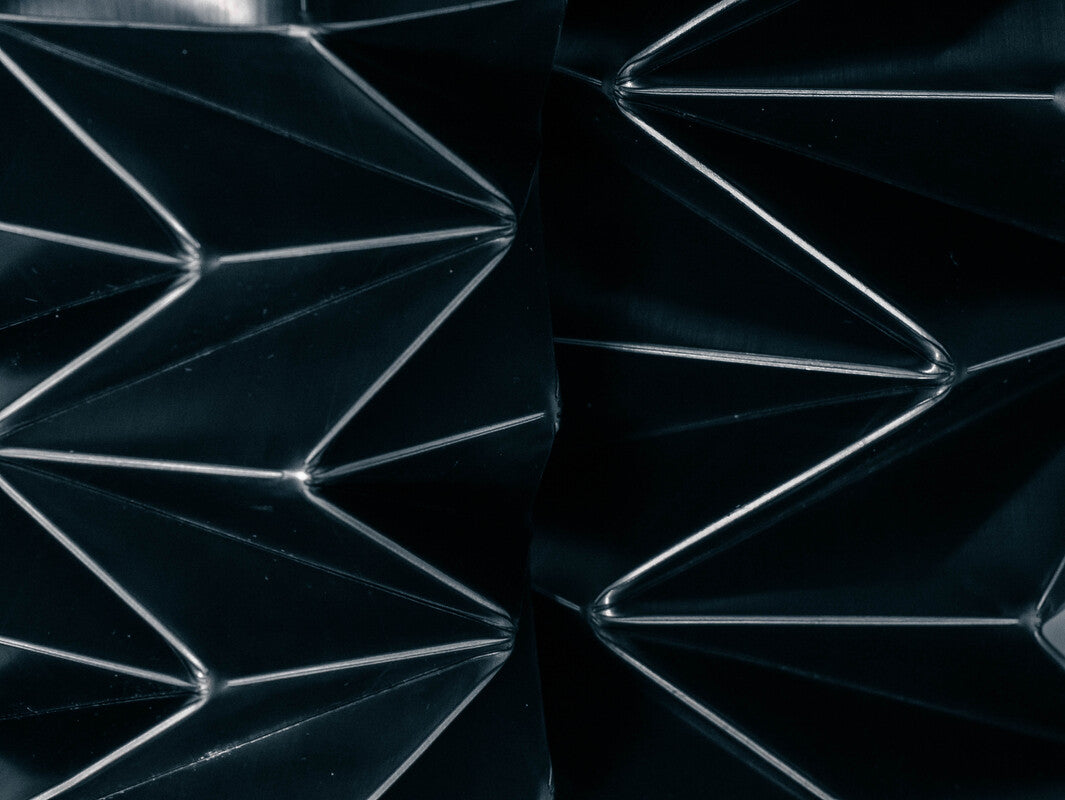

Pliage soufflet de protection cylindrique

Made to last

  • 10 million cycles guaranteed: withstands the highest speeds, day after day.

  • Designed to offer optimum protection in industries requiring high resistance and durability in the face of external aggression.

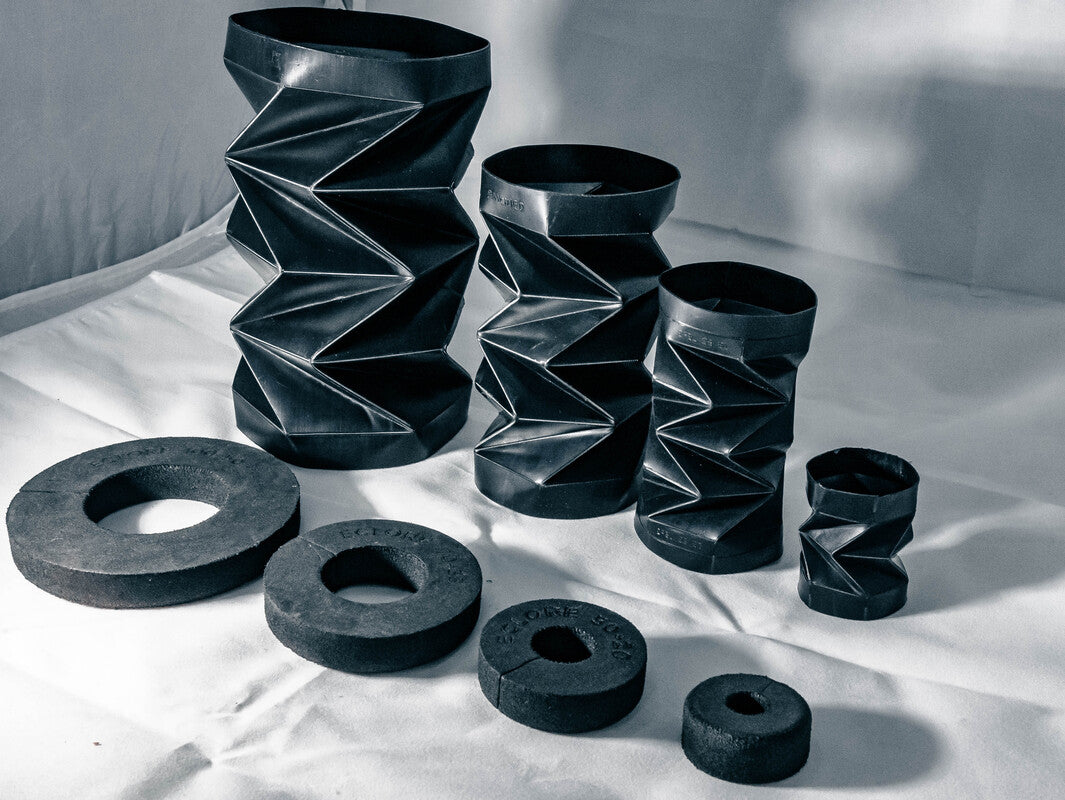

Soufflets de protection cylindriques de tailles différentes

Total adaptability to your constraints

We've designed a modular solution to suit different diameter sizes to ensure a controlled seal.

Several options:

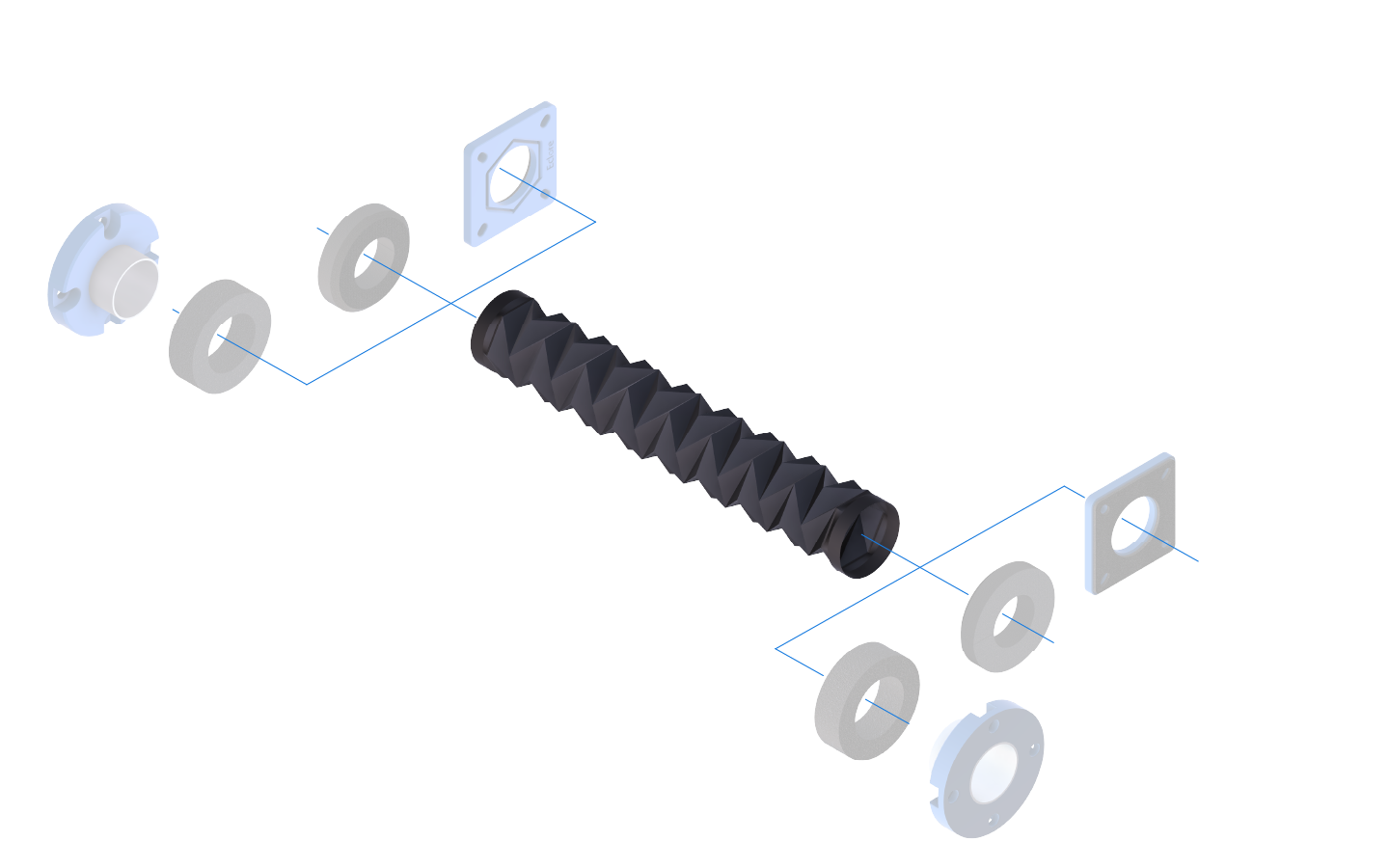

  • Modular fixing options:

Foam adapter: allows easy installation of the bellows. It meets the same strength requirements as the bellows section. Standard thickness is 15mm. We can reduce the thickness on a case-by-case basis.

Mounting flange: minimum height of 4mm for space-saving installations.

  • Custom filtration: Do you have a demanding environment? We can integrate a reinforced filtration solution to protect your equipment even better.

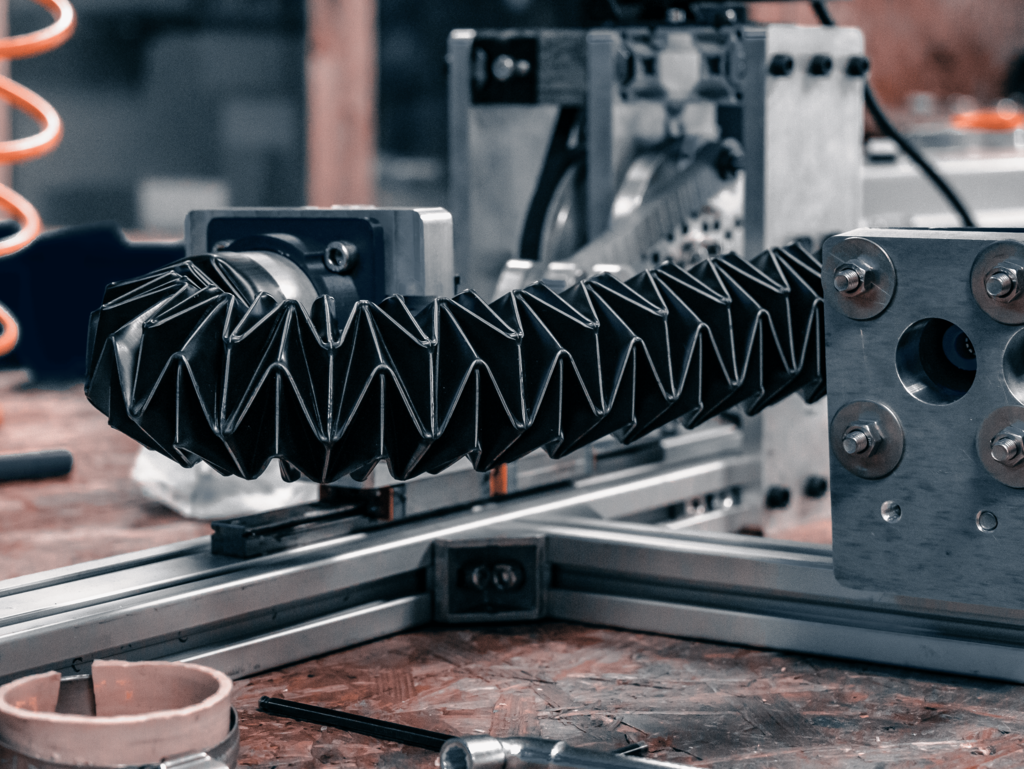

Bancs d'essai torsion soufflet de protection cylindrique

Resistance to the most demanding environments

Our bellows are designed to stand up to even the toughest conditions:

  • Dust and liquid protection

  • Extreme temperature resistance: our materials maintain their performance from -40°C to +80°C.

  • Chemical resistance: ideal for applications exposed to corrosive products.
Our quality approach
Montage soufflet de protection cylindrique

Fast installation and low maintenance

Our fixings are designed to simplify and speed up installation.

Once in place, our bellows require little or no maintenance, thanks to their natural robustness and optimised design.

Installation in 2 minutes: No special tools required

Everything can be installed without completely dismantling your equipment.

Watch the video

Applications of cylindrical protective bellows

1 10

FAQs

What attacks does an Eclore protective bellows protect against?

  • Eclore protective bellows are designed to isolate the mechanical component from the outside. Folding technology offers the best compromise between rigidity and shock absorption.

    In the case of applying the protection of a cylinder, the protective bellows isolates the rod and the joints from the working environment of the
    following attacks:

  • Mechanical : Scratches, Shocks

  • Environmental : Picketing, Ultraviolet, Dust, Sap

  • Chemicals : Solvents, Oils, Hydrocarbons

Protective bellows in range or tailor-made?

We offer two options:

  • The EPBL range includes standardized bellows. The stroke varies with a step of 100mm. Primary diameters are 35, 50, 70 and 100mm. The diameter possibilities are extended thanks to the adapters of
    fixation.

  • Custom made. Our dedicated design office is there to study the feasibility of an installation. We invite you to use the online configurator
    in order to facilitate exchanges. The configurator allows you to retrieve the essential dimensions to choose the pattern of the protective bellows, its diameter, its stroke and its fixings.

How to install a protective bellows?

Traditionally, installing a protective boot can be a tedious task requiring the use of tools such as a hydraulic clamp or expansion cone.

We have redesigned the installation so that it can be done by anyone without special tools.

Our promise, installation in 2 minutes without complete disassembly of the cylinder.
