Protective bellows EPBL035-05-034

Protective bellows EPBL035-05-034

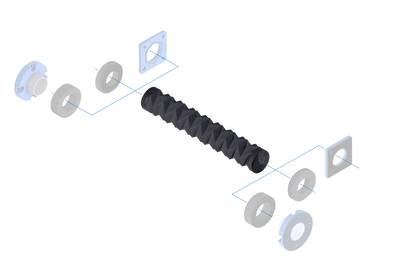

Protects your power transmissions from the external environment: shocks, abrasion, chemical attacks, UVs. The rigidity of the protective bellows ensures the safety of operators.

View full details

Features

  • Protects your power transmissions from impact and abrasion.
  • Meets FDA requirements in the Code of Federal Regulations (21 CFR 177.1520) for food contact.
  • Isolates your operators from danger.
  • Seals your system from attacks by hydrocarbons and solvents.
  • Withstands an environment between -40°C to 80°C.
  • Large number of fixings.

Specifications

⌀S Bellows outer diameter 35 mm
Stroke Maximum bellows 532 mm
Lmax Maximum length of bellows deployed 656 mm
Lmin Minimum compressed bellows length 124 mm
Ld Active length of bellows deployed 626 mm
Lc Active length of compressed bellows 94 mm
H Function of fixings (Adapter default) 15 mm
⌀C Maximum overall diameter 38 mm
⌀D Minimum diameter inside the compressed bellows 11 mm
Weight 36 g

Downloads

CAD Compressed bellows
Bellows deployed
Datasheet Catalog
Data sheet
Manual Installation instructions
